Digital Display Aluminum Double Head Cutting Saw is used for cutting aluminum for doors and windows,
curtain etc.
Two cutting head of the aluminum Aluminum double head cutting saw can work together or single,when together work,one time can cut off the required length and angle.
Double head cutting saw machine can be customized according to the length of the profile length, to complete the precise cutting requirements.

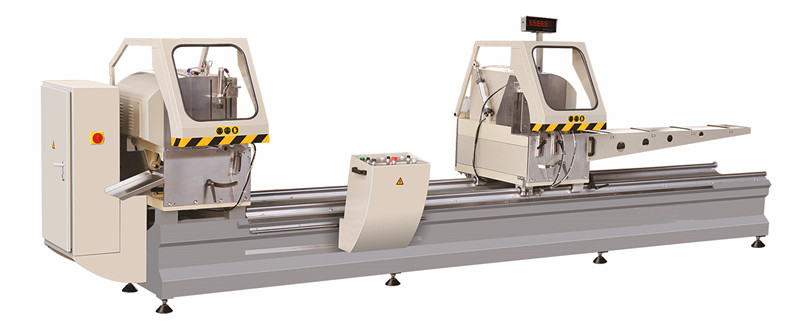

WhatsappDigital Display Aluminum Double Head Cutting Saw
EQUIPMENT FEATURES
- Double Head Cutting Saw Aluminum Window Machine has feature of easy operation, reliable performance,
advanced technique and convenient maintenance.
- The profile cutting size adopts the digital display technique to ensure high efficiency and accuracy.
- Imported carbide saw blade gives accurate processing and high efficiency.
- Two cutting heads can work together or single, when together work,one time can cut off the required length and angle.
TECHNICAL PARAMETER
| Model | CLJZ2X-500*4200 |
| Power supply | 380V 50Hz |
| Air pressure | 0.5~0.8MPa |
| Cutting motor power | 2*2.2kw |
| Motor rotary speed | 2800r/min |
| Air consumption | 60L/min |
| Blade Specification | Φ500*Φ30*4.4 Z=120 |
| Cutting length | max4200mm min360mm at 90° max4200mm min360mm add two profile heights at 45° |
| Cutting width*height | max 150mm*150mm at 45° max 150mm*200mm at 90° |
| Cutting angle | 90° 、45° |
| Overall dimension | 5700*1750*1950mm |
| Weight | 1800kg |
PRODUCT DETAILS

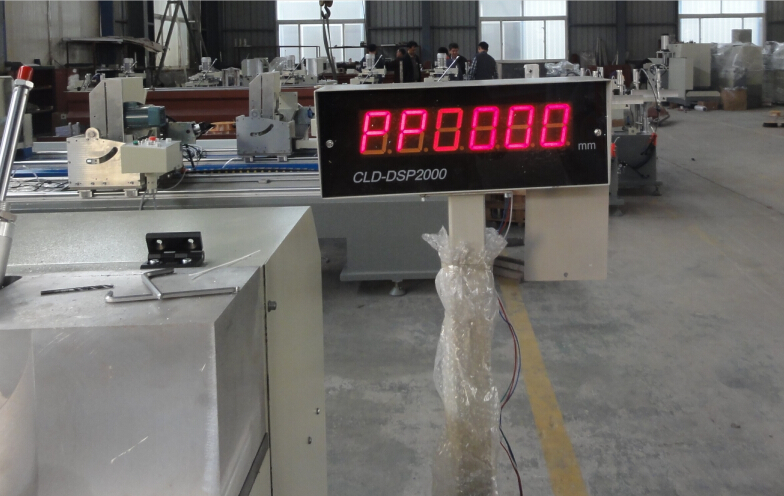

The imported digital gate system automatically displays the cutting length.

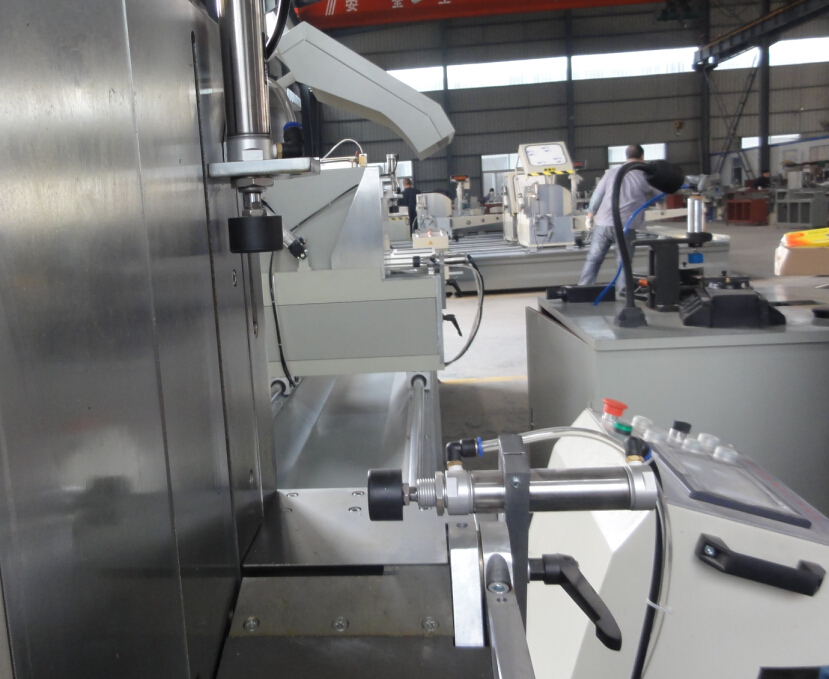

Press cylinder to fix profile.

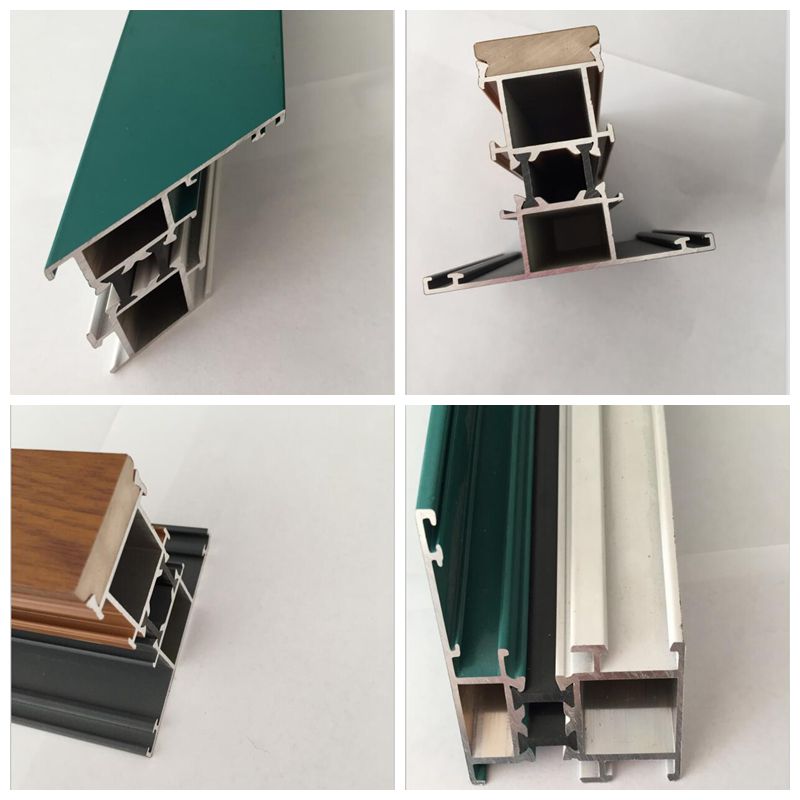

Samples
Factory Show
