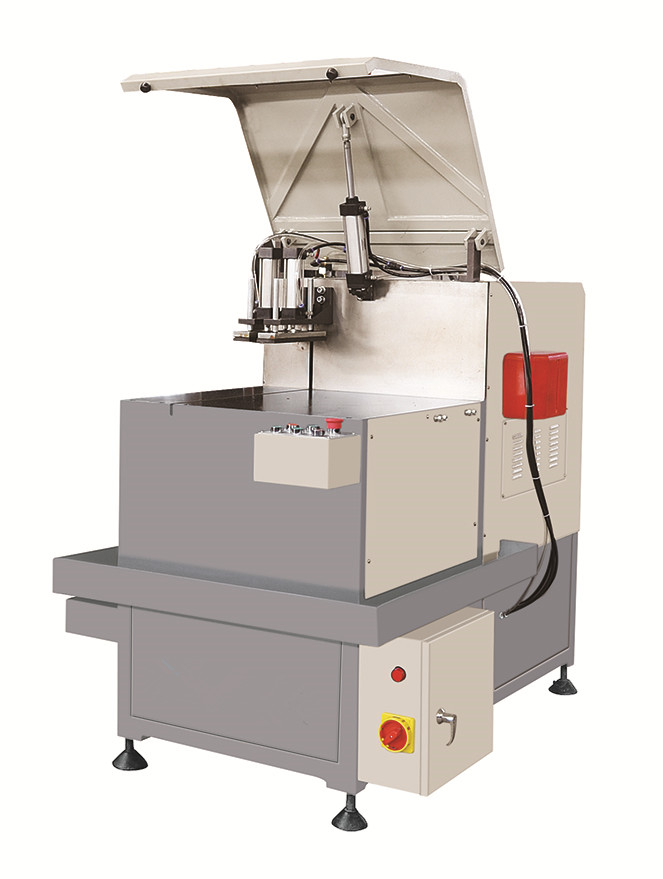

Aluminum Profile Single Head High-efficient Cutting Saw
- TRUEPRO
- Shandong,China
- 10days
- 50sets/month
Our company is a manufacturer of window machine,insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.
Used for aluminum windows and doors profile cutting and for curtain wall profile cutting also for plastic profile cutting.
WhatsappAluminum Profile Single Head High-efficient Cutting Saw
EQUIPMENT FEATURES
- Used for aluminum windows and doors profile cutting and for curtain wall profile cutting also for plastic profile cutting.
- Adopted carbide alloy blade.
- This machine with up-feed blade and digital display positioning system(depending on request)
TECHNICAL PARAMETER
| Input power | 2.2kW |
| - Power supply | 380V/50Hz |
| Air pressure | 0.5~0.8MPa |
| Motor rotary speed | 3400r/min |
| Saw Blade specification | Ф500×Ф30mm×120P - |
| Cutting angle | 90° |
| Cutting width ×height | 400×150mm |
| Overall dimension | 6500×1150×1600mm |
Factory Show
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
