- TRUEPRO
- Shandong,China
- 15Days
- 50sets/month
Our company is a manufacturer of window machine,insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.
End milling machine universal milling blades can be adjusted in up/down left/right directions and not made extra, which to fit for different processing requirement and ensure the efficient working.
Convenient tool adjustment to meet different processing requirement, need not ordering tools when process various profile, thus candecrease cost and save time.
Large tool diameter, high milling speed and good processing resul.

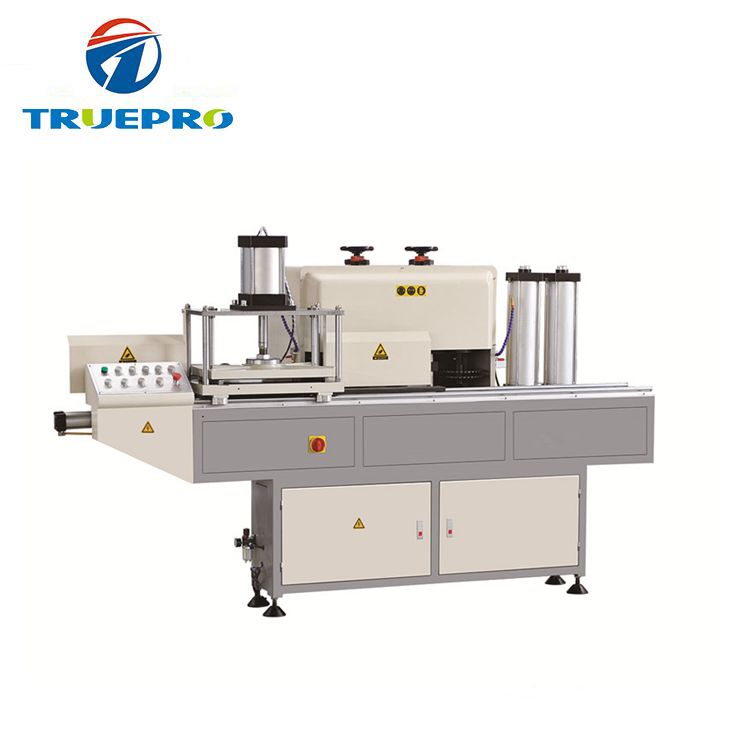

WhatsappAluminum Window Profie Five Cutter End Milling Machine
![4{[LV7)QV{$DZA179C]4I5I_副本.jpg](../../uploadImages/1419-201907081412015466.jpg "4{[LV7)QV{$DZA179C]4I5I_副本.jpg")
EQUIPMENT FEATURES:
-Used for aluminum profile and suitable for various profiles.
-Camp one time can processing muiti-piece profiles, which increased the processing efficiency.
-Universal milling blades can be adjusted in up/down left/right directions and not made extra,
which to fit for different processing requirement and ensure the efficient working.
-Convenient tool adjustment to meet different processing requirement, need not ordering tools when process various profile,
thus candecrease cost and save time.
-Large tool diameter, high milling speed and good processing resul.
-Motor driving system for feeding.
MAIN SPECIFICATION and TECHNICAL PARAMETER:
| Power supply | 380V/50Hz |
| Cutting motor power | 4*2.2KW |
| Motor rotary speed | 2800r/min |
| Operation air pressure | 0.6~0.8MPa |
| Spindle diameter | Ф32mm |
| Diameter of milling cutter | Ф250mm |
| Saw Blade specification | Ф305mm |
| Cutter adjustment | 0~85mm |
| Worktable journey | 0~1500mm |
| Contour dimension | 2680*1200*1600mm |
| Weight | about 1000kg |
MACHINE DETAILS:

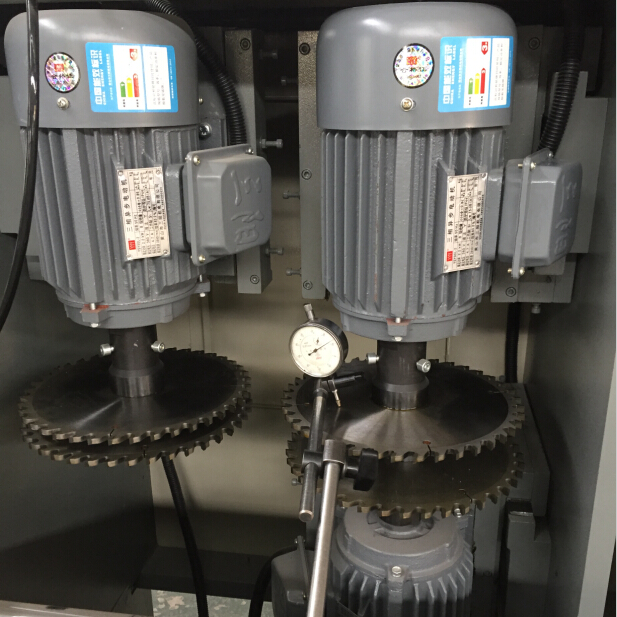

Electric motor and saws

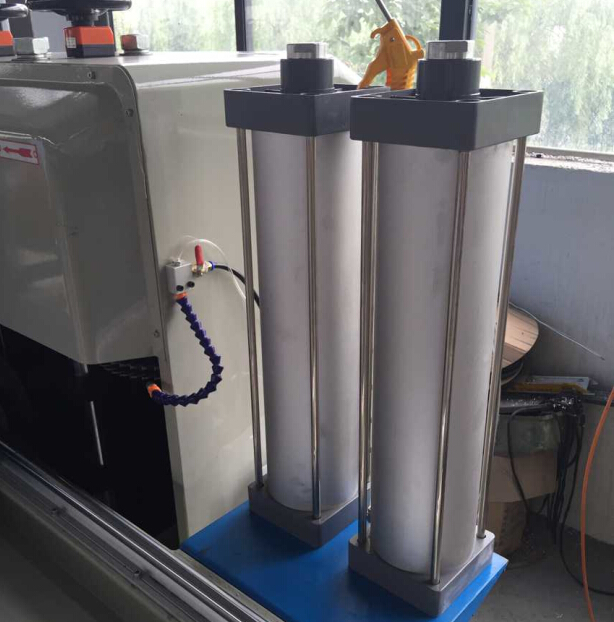

Cylinder
Factory Show
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
