4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.

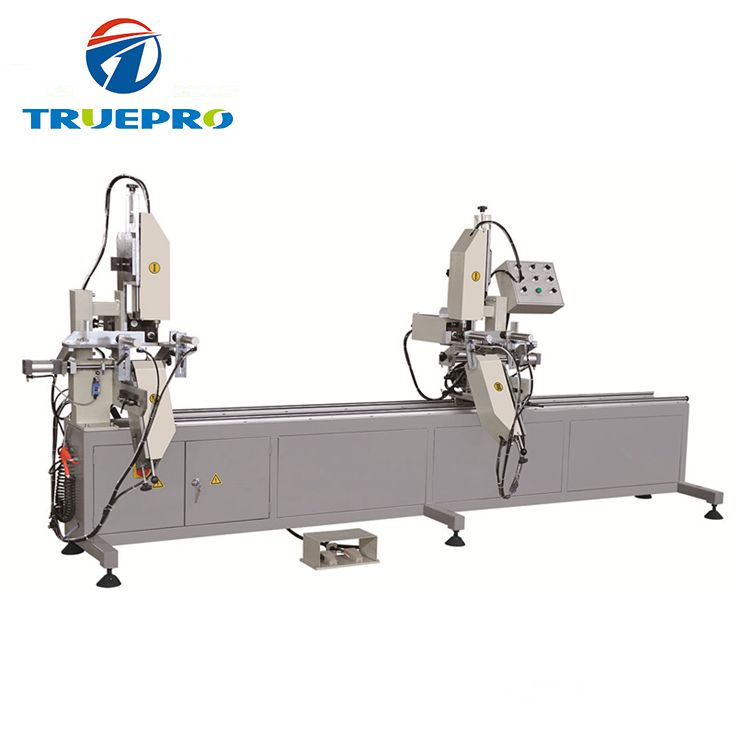

Automatic Double Head Water Slot Milling Machine Convenient adjustment for the cutter location to meet different kinds of profiles.
Special feeding system, need no special maintenance, high milling quality.
Miling all kinds of water slots and air presure balance grooves.
WhatsappAutomatic Double Head Water Slot Milling Machine
EQUIPMENT FEATURES:
-Miling all kinds of water slots and air presure balance grooves.
-Two three-axis milling heads layout along the machine.
-One time clamp, two end water slot processing.
-High efficiency, suitable for mass production.
-Special feeding system, need no special maintenance, high milling quality.
-Convenient adjustment for the cutter location to meet different kinds of profiles.
-Water slot milling length adjustable within 100mm, wide adaptability.
-Adopt linear bearing motion to ensure the processing predision.
MAIN SPECIFICATION and TECHNICAL PARAMETER:
| Input Voltage | 220V/50Hz |
| Input Power | 2.28KW |
| Air pressure | 0.5~0.8MPa |
| Air consumption | 50L/min |
| Main-shaft revolution | 25000r/min |
| Cutter Diameter | Ф5、Ф4mm |
| Slot Depth | 30mm |
| Slot Length | 0~60mm |
| Overall Dimension | 4300x1450x1650mm |
| Weight | 700kg |
PRODUCT DETAILS

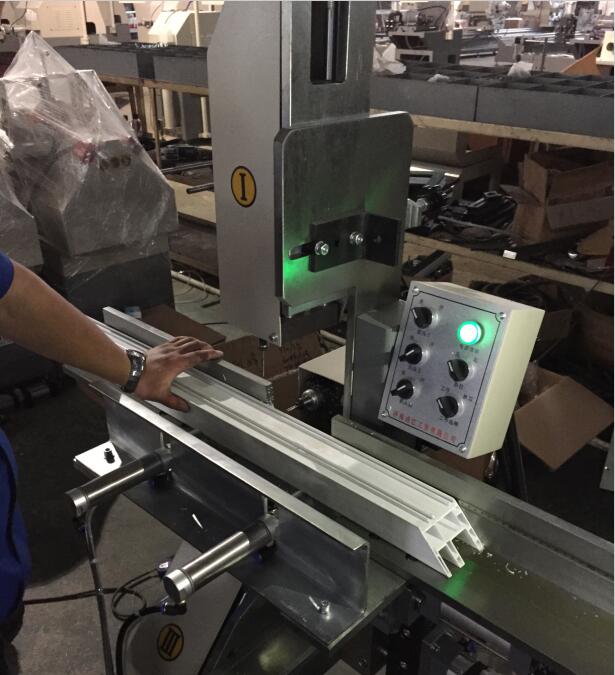

Operation

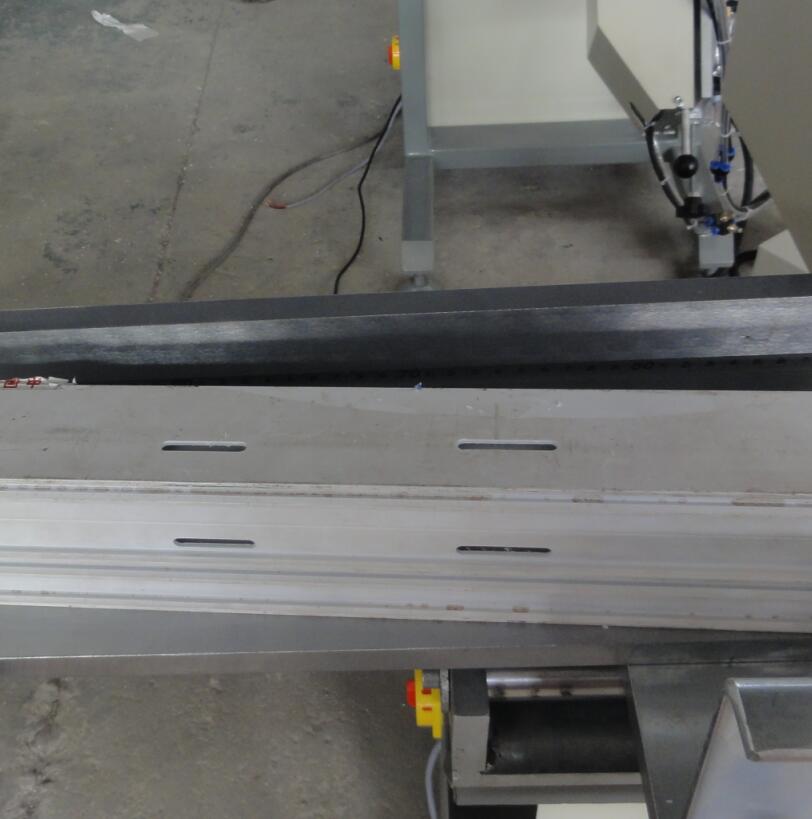

Processing sample
Factory Show
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
