4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.
Curtain Wall Seven Heads Combination Drilling Hole Machine one time corner crimping can control the seam and plane, make the quality foresight.
Four head corner combining machine the control system service system make the connect no-seam and improve the control accuracy.
The moment control function of the service system can auto-press the four corners ensuring the processing effect.

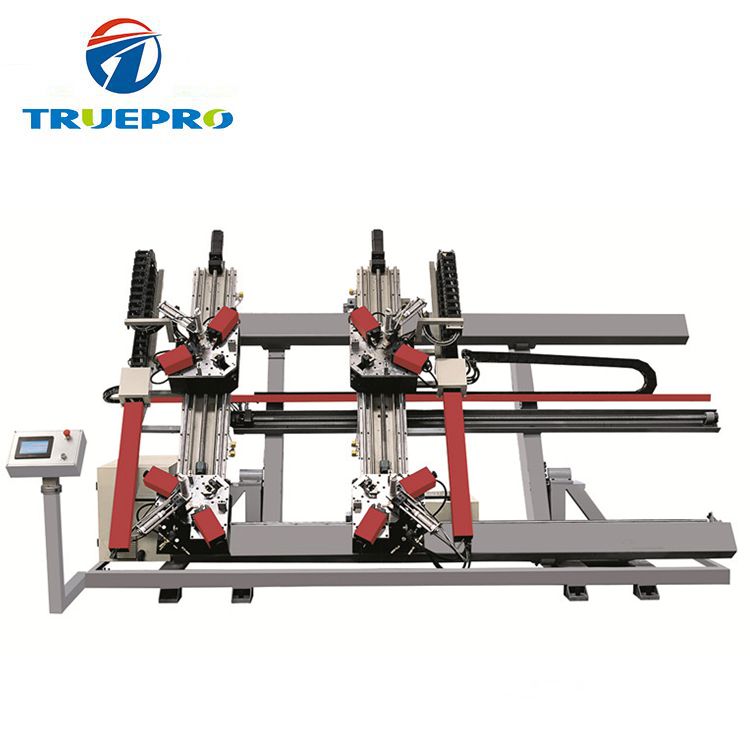

WhatsappCNC Four Head Corner Combining Machine For Aluminum Window

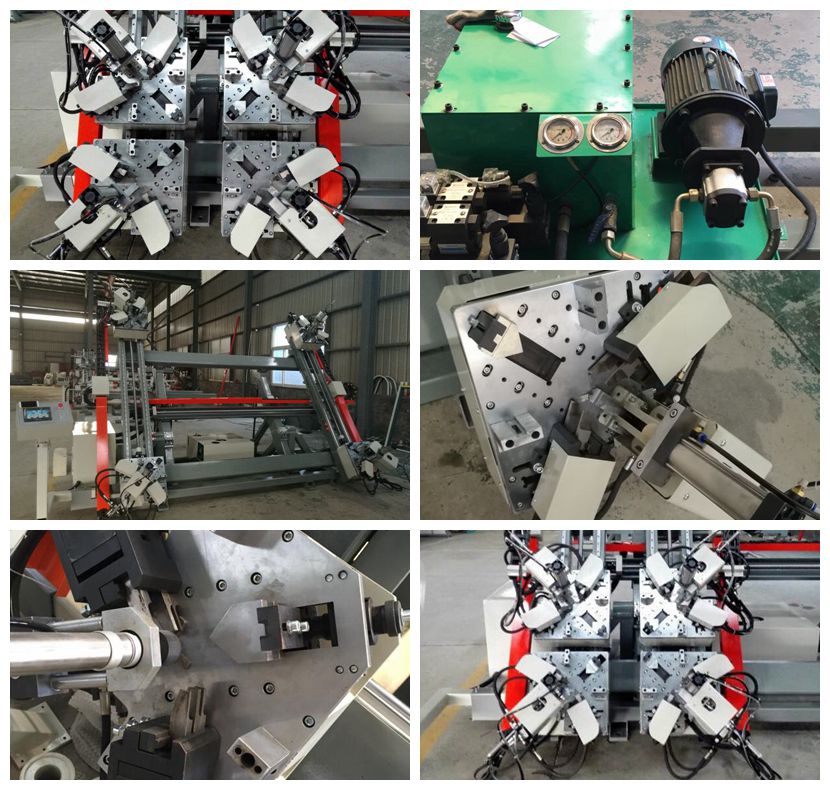

EQUIPMENT FEATURES:
-Used for corner punching combination of aluminum window&door, four corners connecting at one time is available.
-Clamping device can auto move forward/backward, making the operation convenient.
-The frame is specially jointed by steel with high quality and special process.
-The CNC system imported from mtsubishi, japan with high quality ensures the speed and accuracy.
-The moment control function of the service of the service system can auto-press the four corners ensuring the processing effect.
-The corner-crimpinh blade can be adjusted according to the requirement of different profile.
-One time corner crimping can control the seam and plane, make the quality foresight.
-The control system service system make the connect no-seam and improve the control accuracy.
MAIN SPECIFICATION and TECHNICAL PARAMETER:
| Power supply | 380V/50Hz |
| Rating power | 7.5KW |
| Rated pressure | 15MPa |
| Air consumption pressure | 0.5~0.8MPa |
| Capability of oil box | 60L |
| Profile width | 93mm |
| Max. frame dimension | 2200x3000mm |
| Min. frame dimension | 480x480mm |
| Overall dimension | 4700x2200x2600mm |
| Weight | about 2500kg |
