4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.
Double Head Copy Routing Milling Machine has features of compact structure and small volume, the air pressure drives the clamping.
Double head milling machine can achieve continuous copy-routing milling, easy operation and safety.

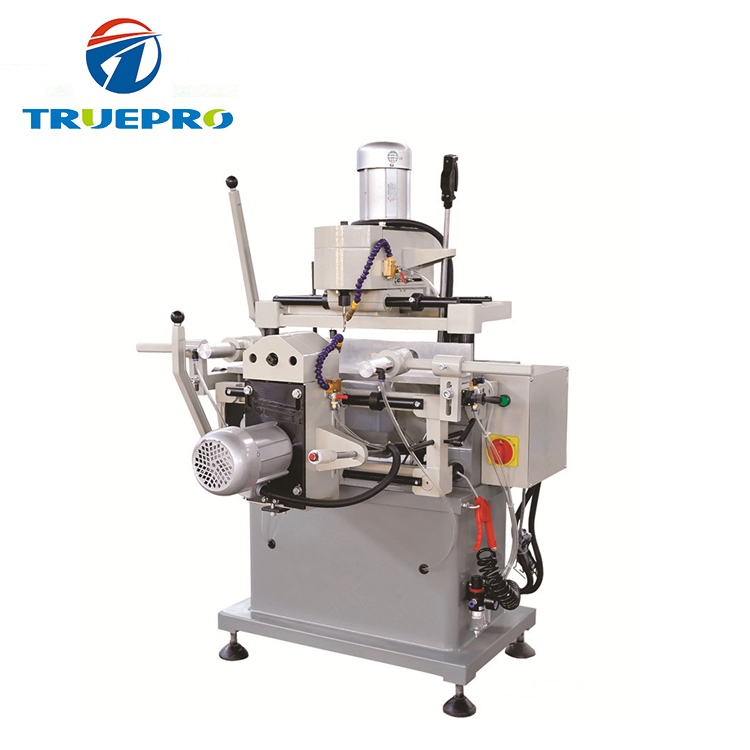

WhatsappDouble Head Copy Routing Milling Machine
EQUIPMENT FEATURES:
-Used for copy-routing processing various kinds of holes, grooves and water-slots.
-It has features of compact structure and small volume, the air pressure drives the clamping.
-It can achieve continuous copy-routing milling,easy operation and safety.
MAIN SPECIFICATION and TECHNICAL PARAMETER:
| Power supply | 380V/50Hz |
| Input Power | 2x1.1KW |
| Operation Air Pressure | 0.6~0.8MPa |
| Cutter Diameter | Ф5、Ф8mm |
| Copy-routing range | 300x100mm |
| Overall Dimension | 1000x1130x1600mm |
| Weight | about 173kg |

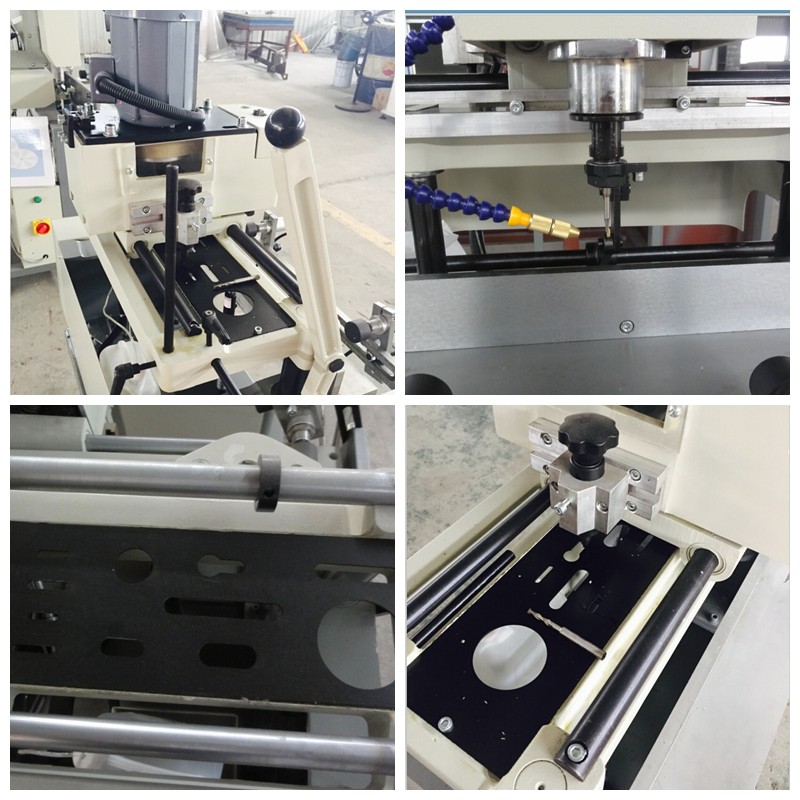

Factory Show
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
