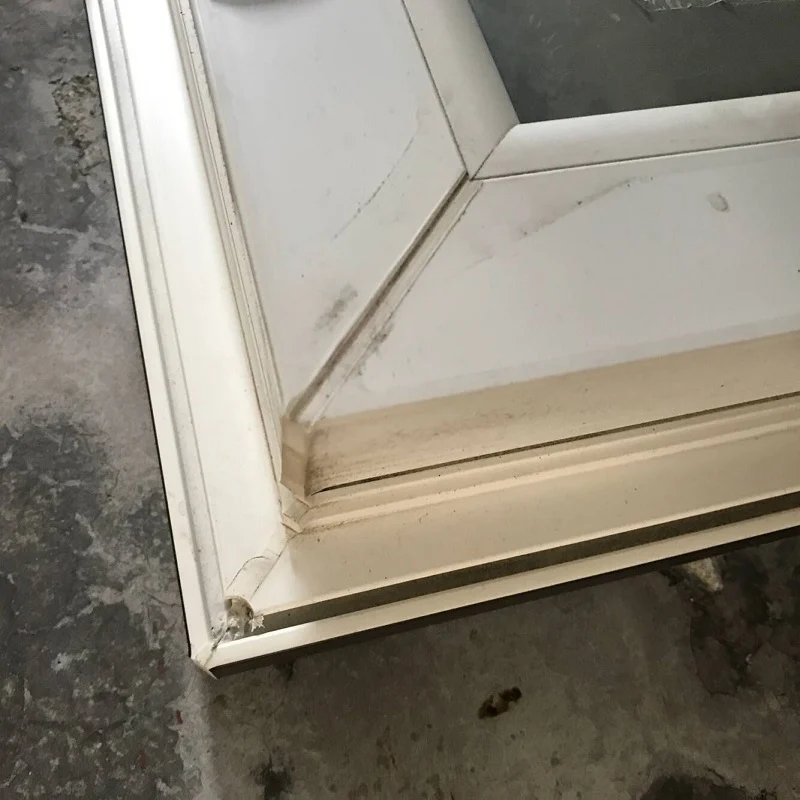

It is suitable for cleaning the welding corner joints of plastic doors andwindows, controlled by two-axis numerical control system, and easy tooperate.

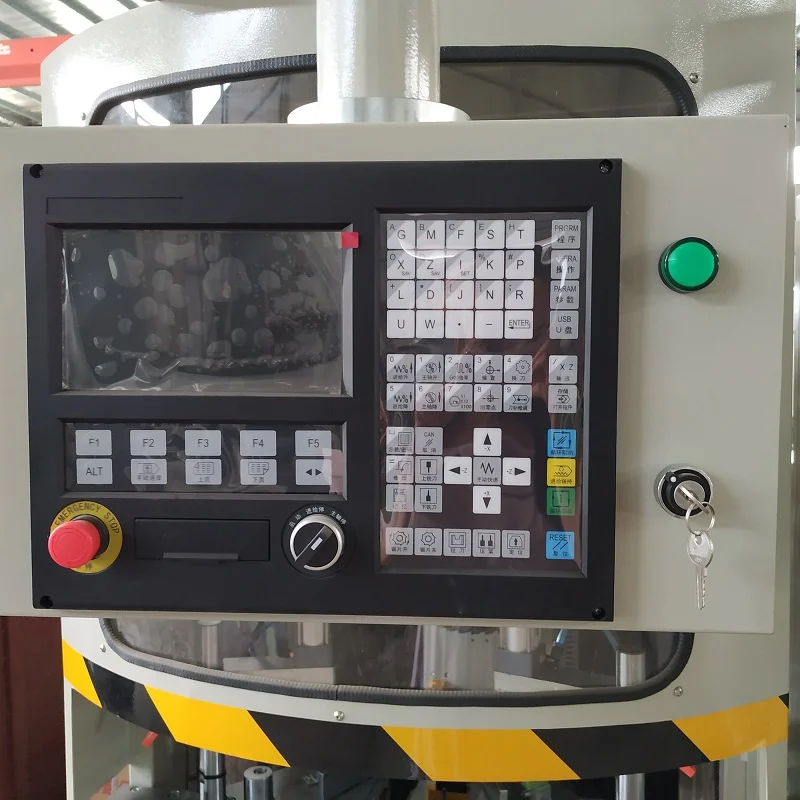

It can store processing programs of various profiles, and the secondprocessing can be started with one key.Servo system, numerical control system, solenoid valve, triplet and othermain components are all imported famous brand products, which havereliable performance and long service life.

The unique internal positioning method ensures the accuracy of cleaningthe welding seams of doors and windows.

It can realize arc differential compensation and diagonal differentialcompensation, and can ideally meet the needs of making high-qualitydoors and windows with various sectional profiles.

Different cutting tools can be customized according to different profilesections to meet the corner cleaning requirements of different profiles.

Detailed parameters

NOITEMCSQJB-CNC-120
1Input power supply380V/50Hz
2Input power1.7kW
3Milling cutter rotary speed2800r/min
4Working air pressure0.5-0.8MPa
5Height of processed profile30~120mm
6Width of processed profile20~120mm
7Overall dimension1570x2670x2070mm
8WeightAbout 750kg
