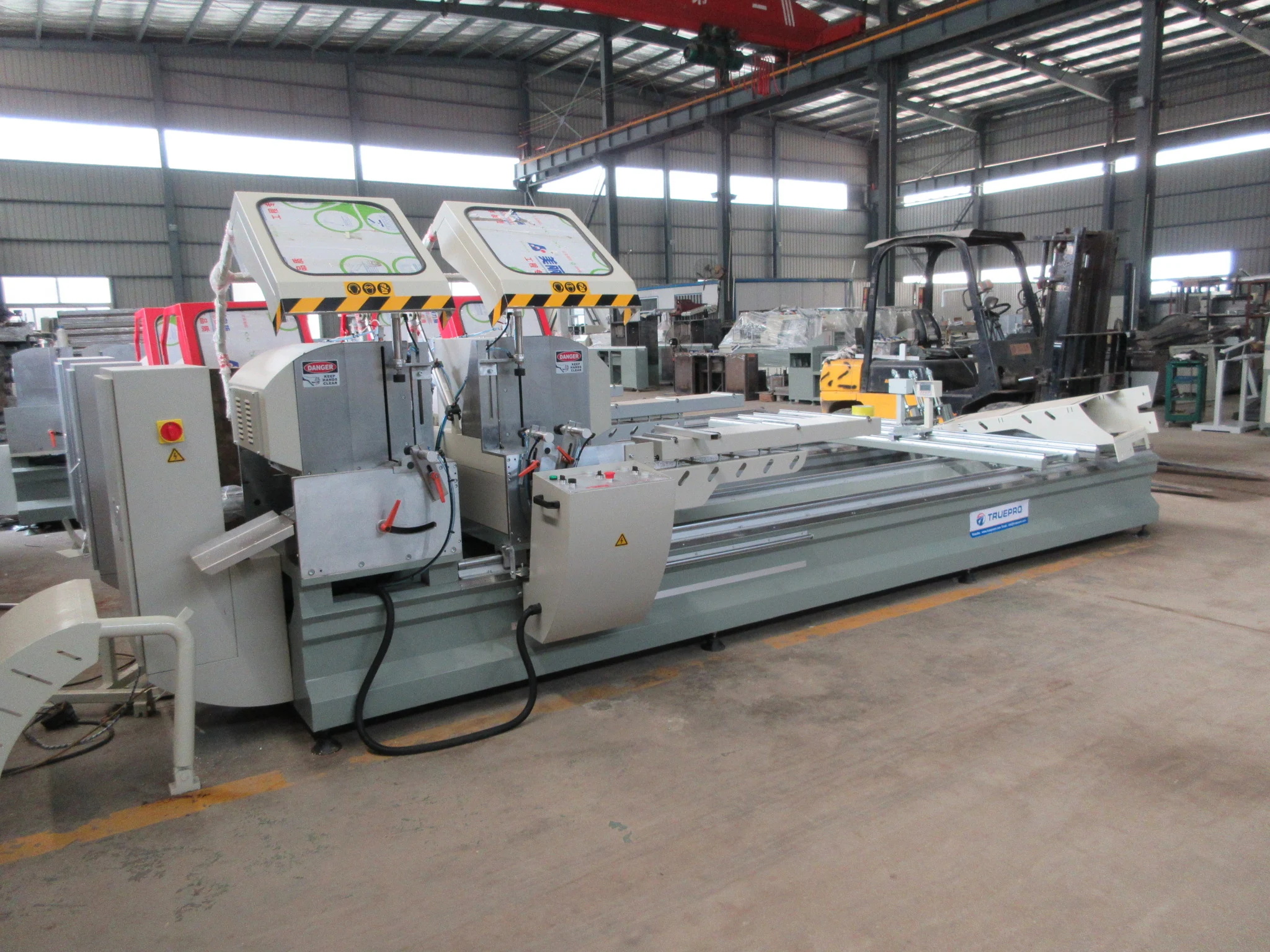

1. It is suitable for cutting aluminum curtain wall profiles, door and window profiles and plastic profiles.

2. The imported digital magnetic grid system can automatically display the cutting length, with high precision of repeated positioning and convenient operation.

3. Adapted to the development of international aluminum doors and windows and curtain wall processing industry.

4. Simple operation, reliable performance, advanced technology and easy maintenance.

5. Using cemented carbide saw blade, cutting speed is high, productivity is high, and machining accuracy is high.

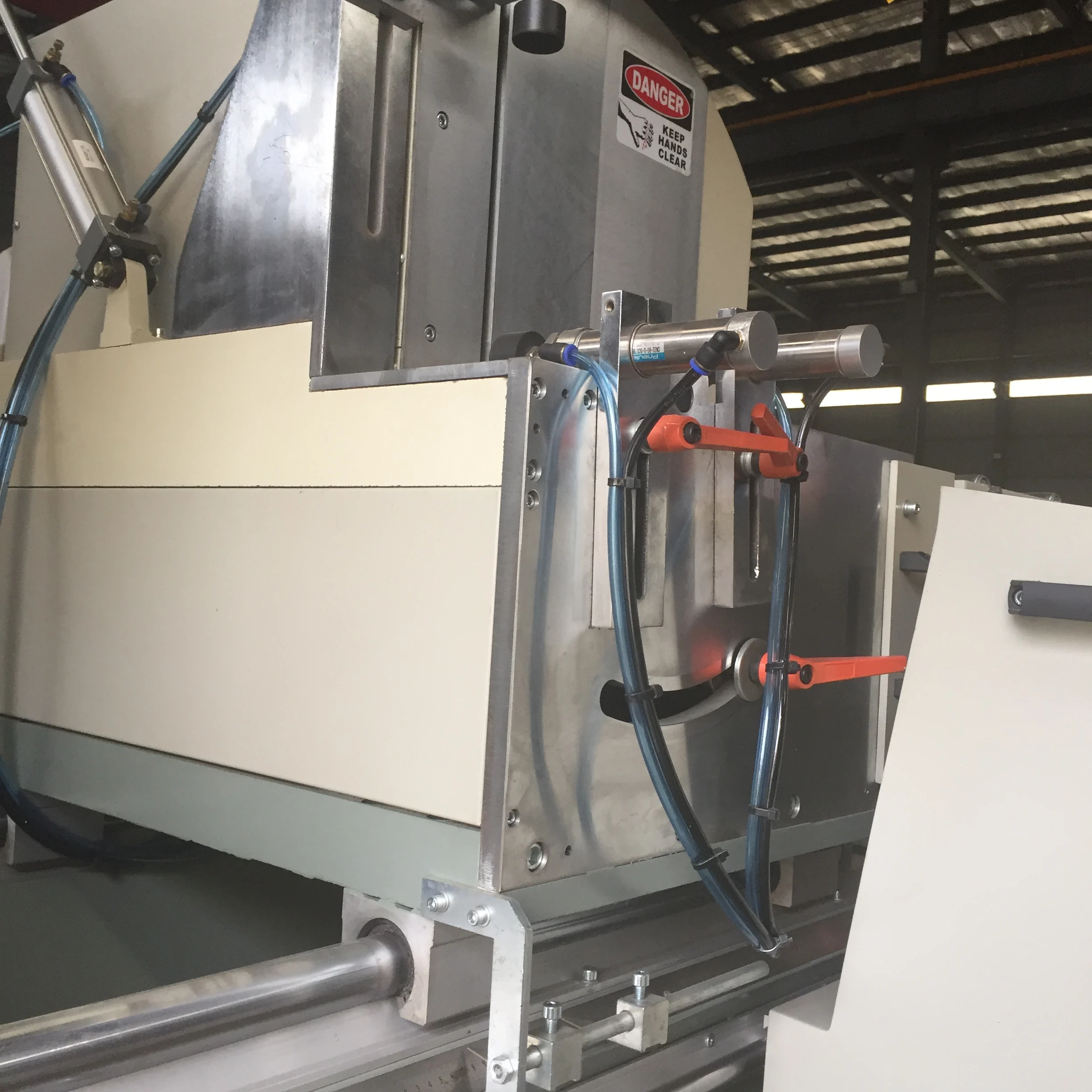

6. The two saw heads can work independently or simultaneously.

7. At the same time, when working, it can cut out the required length and angle at both ends of the profile at one time.

Detailed parameters

ModelCLJZ2X-500*4200
Input power supply 380V/50Hz
Cutting motor power 2×2.2kW
Motor rotary speed2800r/min
Working air pressure 0.5~0.8MPa
Air consumption 60L/min
Saw blade specification Ф500×Ф30×4.4 Z=120
Cutting lengthMax. 4200mm Min. 360mm at 90°
Max. 4200mm Min. 360mm at 45°
Cutting width×heightMax. 150mm×150mm at 45°
Max. 150mm×200mm at 90°
Cutting angle 90°、45°
Cutting angle error 5′
Flatness of cutting profile ≤ 0.10mm
Roughness of cutting surfaceRa12.5μm
Overall dimension5700×1750×1950mm
WeightAbout 1600kg
