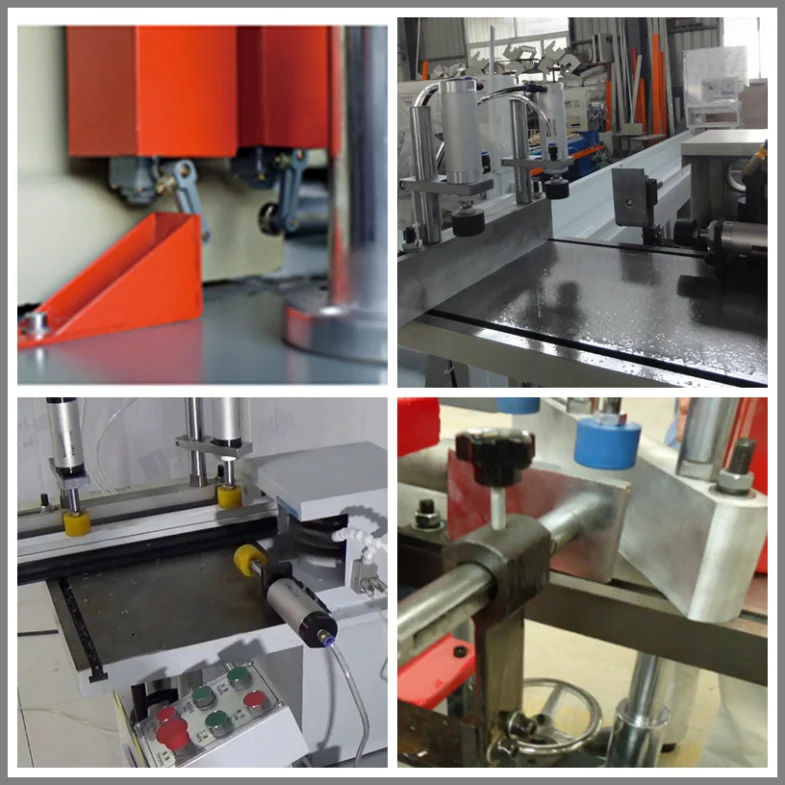

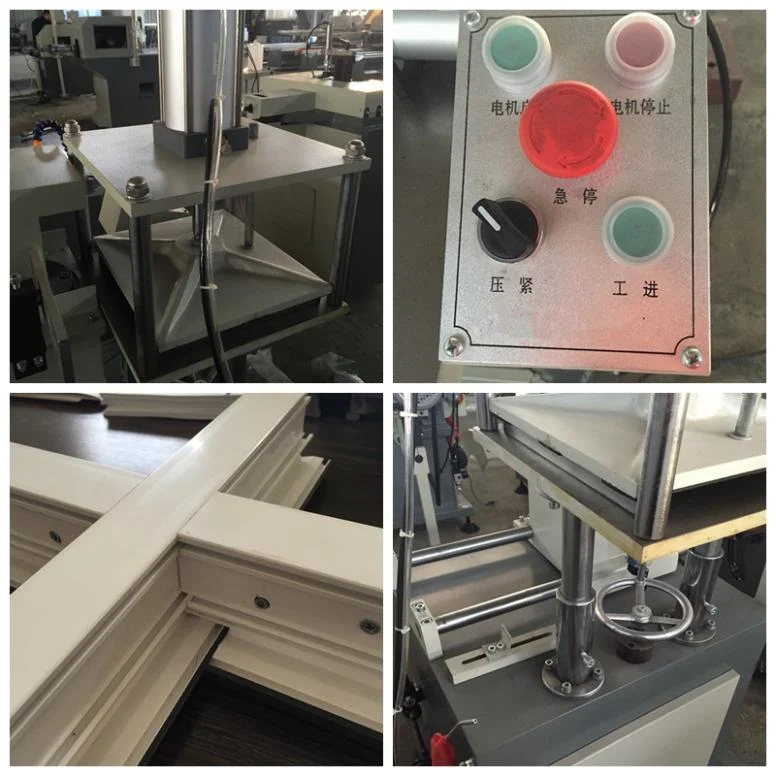

1.Used for processing aluminum profile end,step face and slot etc.
2.Super precision main shaft insures accurate and steady processing.
3.Adjustable processing angle within 35°~90°.
4.Convenient tool setting is due to adjustable worktable.
5.The cutter is mounted on high precision spindle, the motor running accuracy will not affect the tool working accuracy.
6.Cutter feeding adopts linear bearing motion pair so that the working performance is stable.
| ITEMS | CLXD-200 | CLXD-200A |
|---|---|---|
| Input power supply | 380V/50Hz | 380V/50Hz |
| Motor power | 2.2kW | 2.2kW |
| Motor speed | 2800r/min | 2800r/min |
| Working air pressure | 0.6~0.8MPa | 0.6~0.8MPa |
| Milling cutter diameter | (φ200~D110)×Φ32mm | (φ200~Φ110)×D32mm |
| Max.open tenon | 110mm | 110mm |
| Overall dimension | 850×740×1280mm | 850×740×1500mm |
| Weight | About 180kg | About 200kg |
