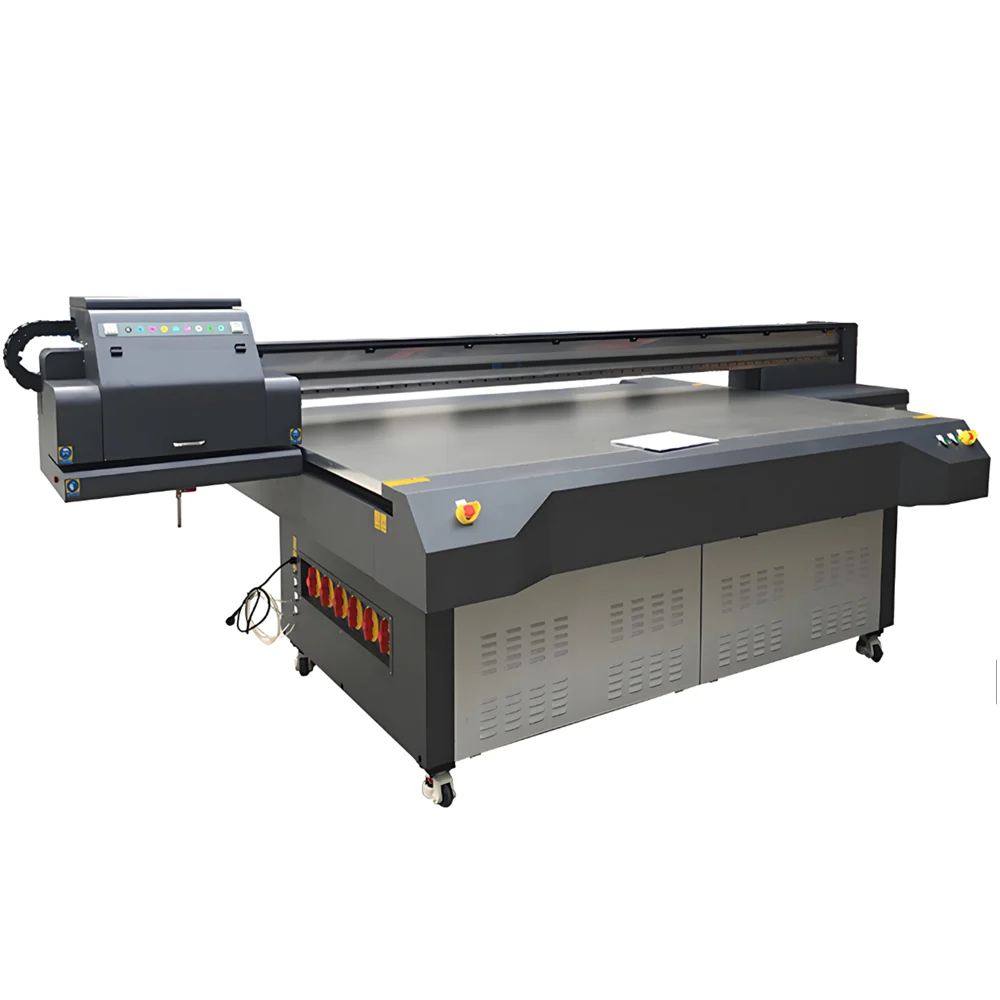

1. Japanese imported Print head for industrial production

2. CMYK W   and varnish optional for glossy surface and high quality flatbed printing

3. 3.3×2.1m vacuum table for large format sheet printing work

4. Hard anodized vacuuming platform to avoid damaging the platform by rigid materials

5. Auto height detection technology to detect print media thickness automatically optional

6. Automatic anti-static design to avoid dust ink drops flying optional

7. Advanced printhead anti-crash system to avoid the risk of a collision between printer carriage and material optional

Detailed parameters

Product ModelYC3221L
Printhead TechnologyDrop-on demand piezo electric
Printhead ControlPrinthead voltage is software adjustable
Printhead TypeRICOH GEN5
Printhead Number4-8
Ink CharacteristicsUV Curing Ink
Ink reservoirsRefillable on the fly while printing/1000ml per color
LampUV LED lamp
Color ControlICC based color, curves and density adjustment
Printhead ArrangementC M Y K W varnish optional
Cleaning SystemPositive Pressure Cleaning
Guide RailMade in Korea
Working TableVacuum Sucking
Sheet Printing Size3300*2100mm
Print InterfaceUSB2.0
Media Thickness0- 100mm
Print Resolution300*900dpi,600*600dpi,600*900dpi,600*1200dpi
Printing Speed15sqm/h-30sqm/h
Life of Printed Image3 years(outdoor),10years(indoor)
File FormatTIFF,JPEG,Postscript3,EPS,PDF etc.
RIP SoftwarePhotoprint optional
Power Supply220V 50/60Hz(10%) >15A
Operation EnvironmentTemperature 20 to 28℃, Humidity 40% to 60%
Machine Dimension5370*3780*1460mm
Weight2000kg
