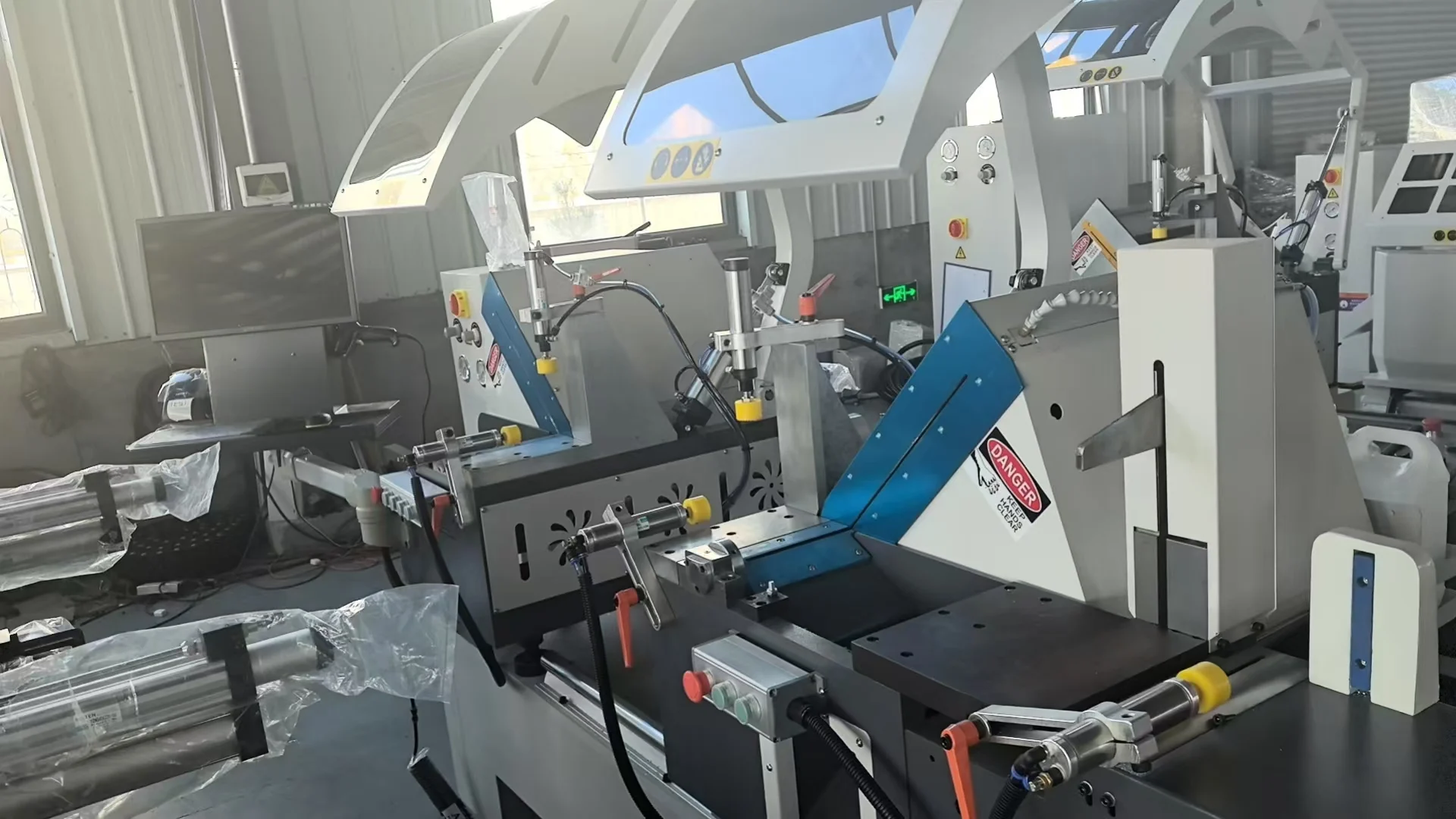

Integration Double Head Precision Cutting Machine -

Using the Daqian numerical control system, it can be connected with the customer’s ERP software.
Cutting and trimming applicable to aluminum curtain wall profiles, window profiles and plastic profiles.
The engine head is made of cast structure, which results in better shock absorption performance and higher stability for the entire machine.
The right nose section movement adopts a high-precision gear-rack motion form, with high transmission accuracy, precise positioning and smooth operation.
The two saw heads can automatically adjust their angles, enabling the cutting of 45° and 90° profiles.
The two saw heads can automatically adjust their angles, enabling the cutting of 45° and 90° profiles.
Imported high-precision spindle motor, ensuring stable rotation of the saw blade.
The gas-liquid damping cylinder enables uniform feed speed regulation and smooth movement.
The automatic opening and closing of the protective cover makes the work both safe and convenient.
Material measurement height device.
Automatic material-supporting structure.

Power supply	380V/50Hz
Air pressure	0.5~0.8Mpa
Sawing motor power	2*3.0 Kw 2800 r/min
servo motor	0.75kW 4050r/min
Gas consumption	60L/min
Saw blade specifications	Φ550Φ304.4 Z=120
Sawing length	360-4200mm at 90°
Sawing width*height	MAX 180mm*150mm at 45 °
MAX 180mm*200mm at 90°
feeding speed	0～3m/min
Sawing angle	45° 90°
The range of nose movement speed	0～20m/min
Repetitive fixed-length precision	≤0.10mm
Cutting angle error	±5′
Cutting profile roughness	Ra12.5μm
Dimensions	650017501950mm
Weight	about 1850kg
