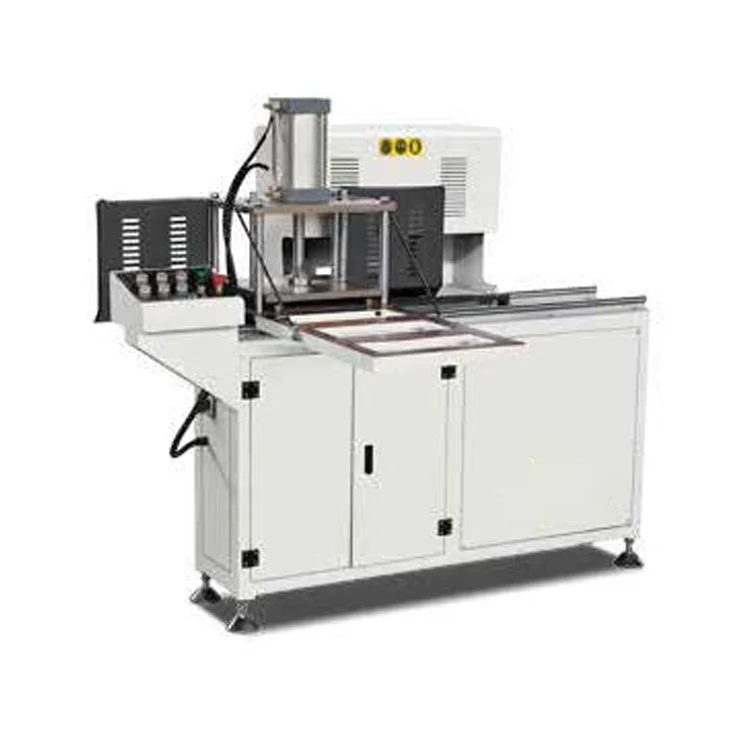

1.It is suitable for milling the end face of aluminum profile to fit different sections.
2.It is the first time to create the structure of the interaction between the two knife axes, without customized blade, making the milling and tenoning processing simple and easy.
3.The company’s excellent pneumatic atomization cooling system, so that the milling effect is better, more durable tools.
4.Precision processing tool shaft and bearing block, make the tool shaft rotation more balanced, noise and vibration far lower than other similar products.

Detailed parameters

ITEMSCLXD-220
Input power supply380V50Hz
Motor power2×2.5kW 2800r/min
Working air pressure0.5~0.8MPa
Milling cutter specificationφ220mm、Φ160mm
Worktable size460×360mm
Max.processing tenoning size40mm
Overall dimension2680×1200×1600mm
WeightAbout 450kg
