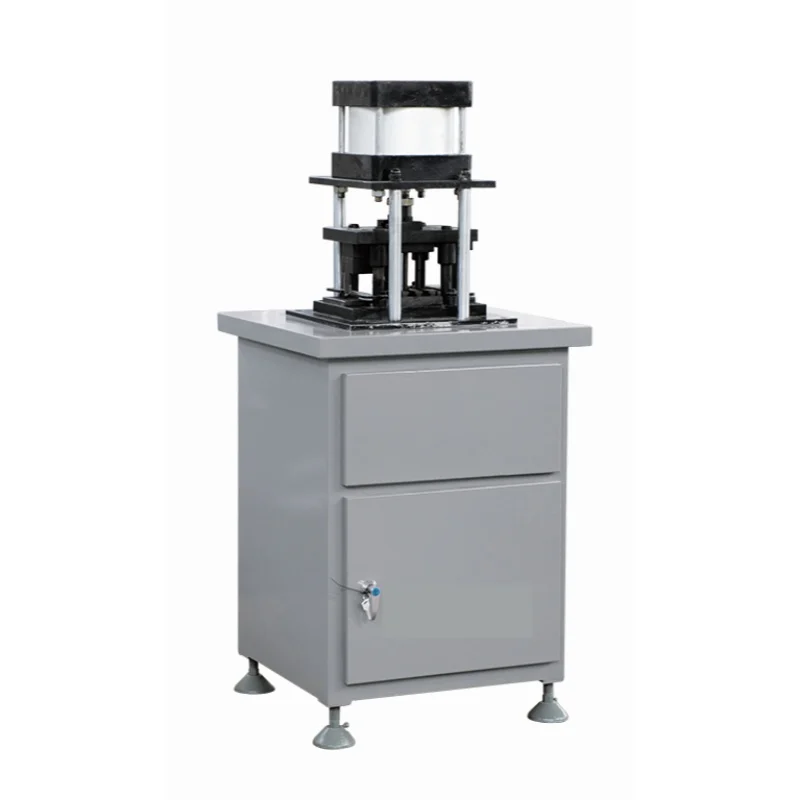

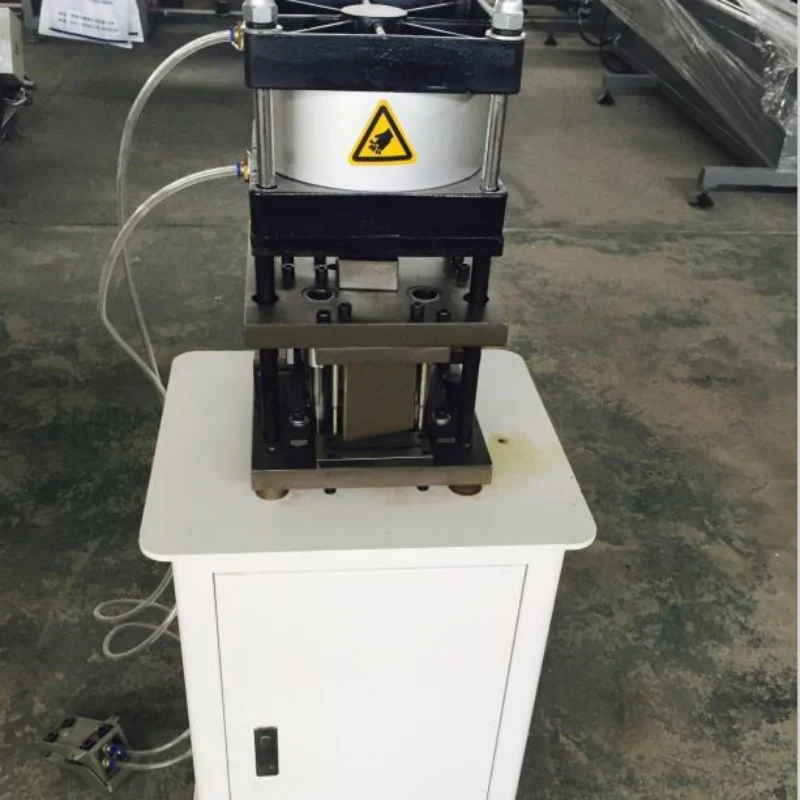

1.It is suitable for stamping the empty slot of aluminum door and window hardware installation, pneumatic control and stable work.
2.Four-station pneumatic stamping is adopted, with smooth stamping and high production efficiency.
3.It is controlled by pneumatic pedal valve and works stably.

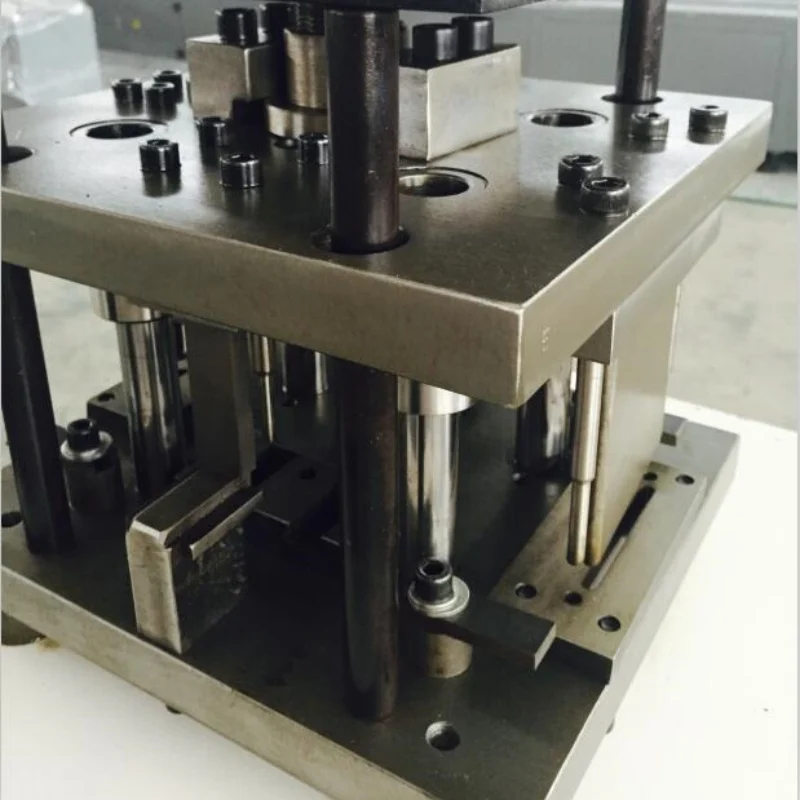

4.Four working positions, which can complete the processing of water trough, flat fan handle hole, corner cutting and driver end punching (Ф 10, Ф 6).
| Model | CLY-16 |
|---|---|
| Working air pressure | 0.6-0.8MPa |
| Press nominal pressure | 16KN |
| Number of working positions | 4 |
| Punching travel | 30mm |
| Die size | 340*240*500mm |
| Overall dimension | 520*450*1200mm |
| Weight | About 120kg |
1.Used for installation of aluminum alloy windows and doors and the punching processing of aluminum profiles. 2.Punching process, by changing......

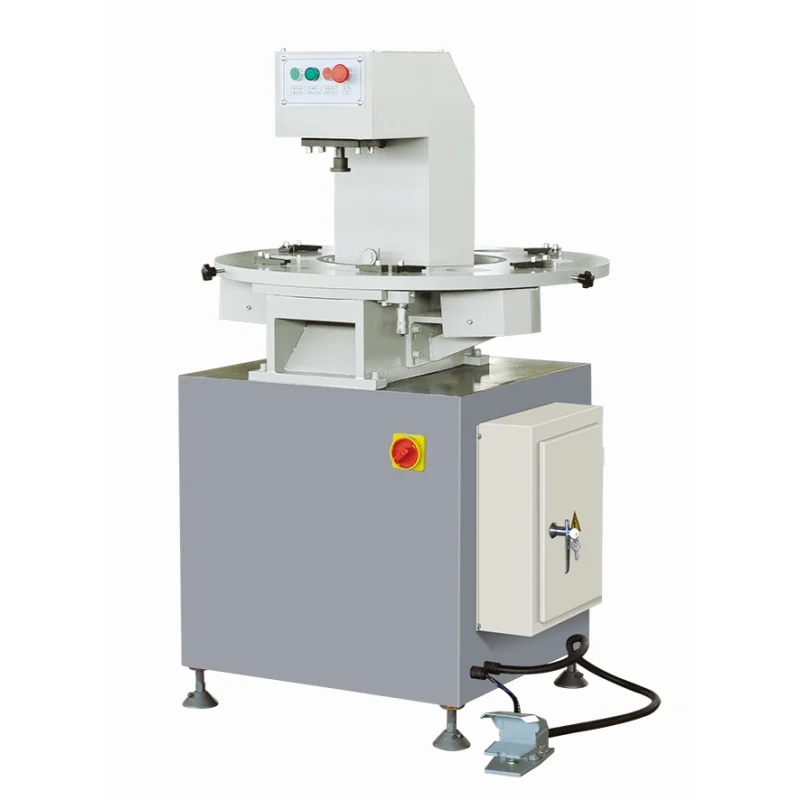

1.Applied to punching processing of single modes and combination modes. 2.Lnsttallation and replacement of mould can be of large,convenientness,fastness,high speed......

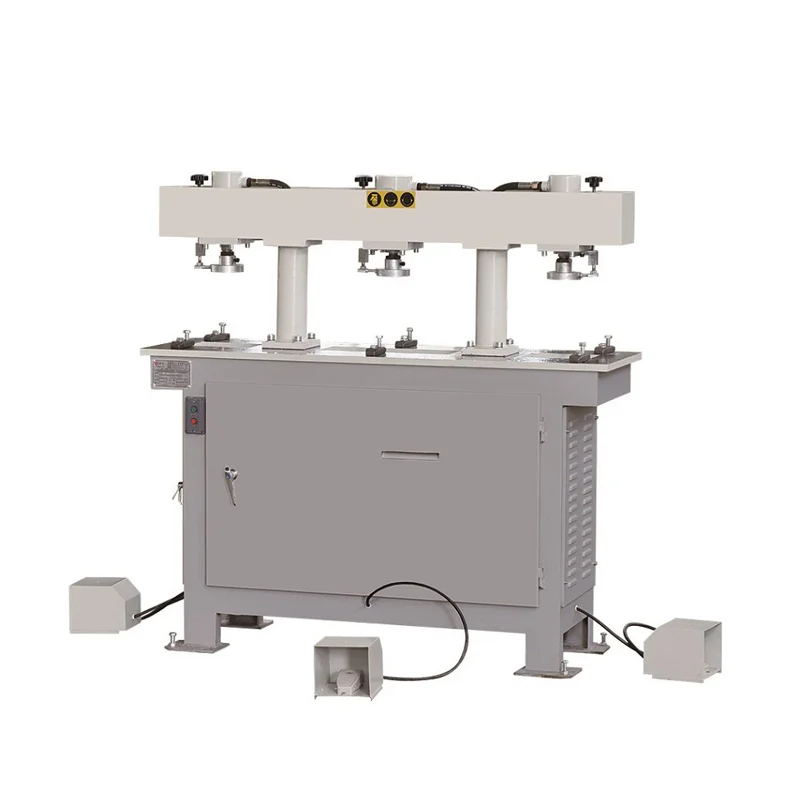

1.It is suitable for blanking of single-mode and four-station combined dies for various series of aluminum door and window profiles.. 2.The......

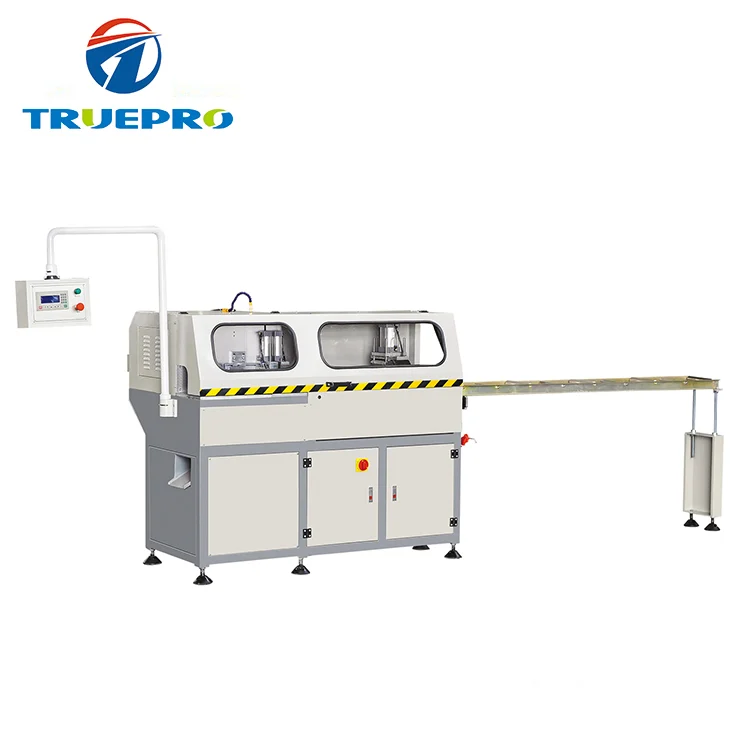

1. It is suitable for cutting corner code profiles of aluminum doors and windows, and can realize continuous cutting of......
