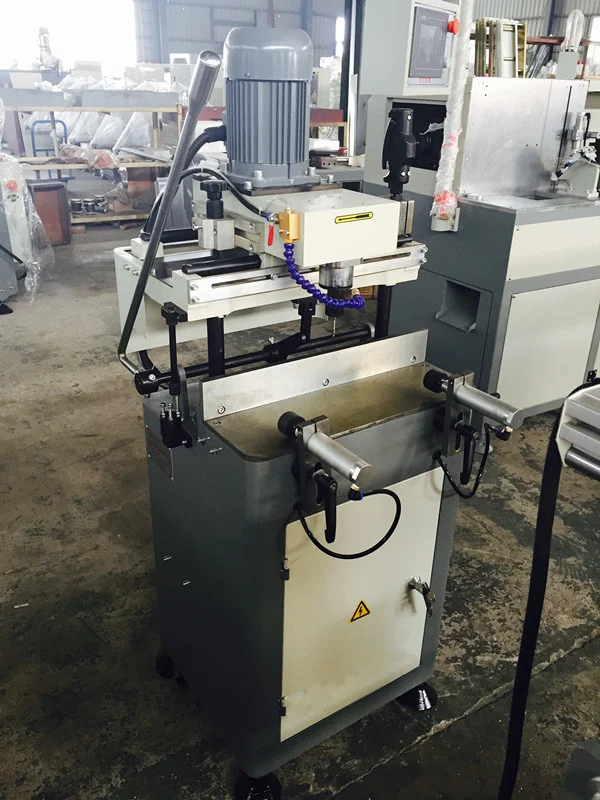

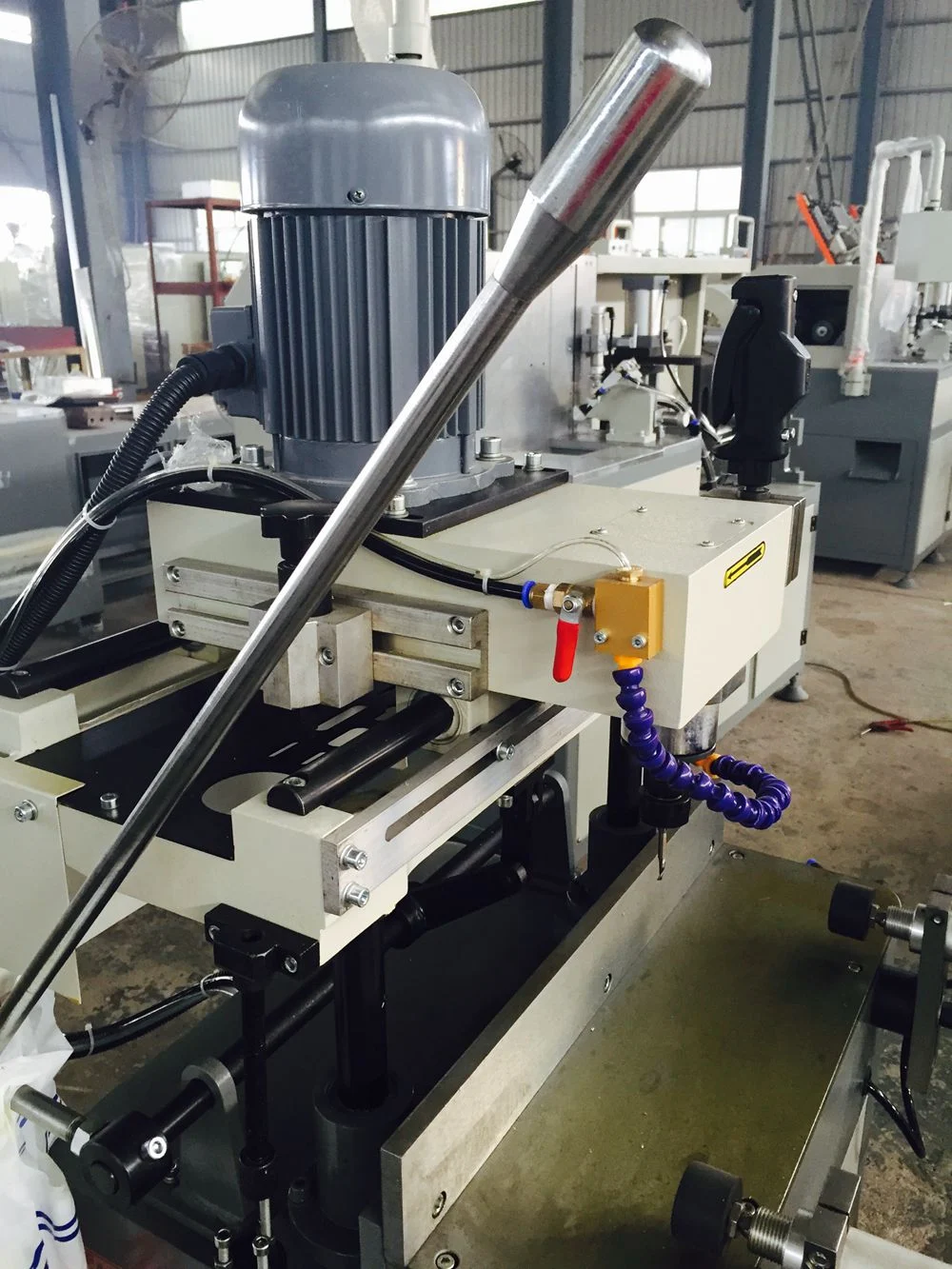

1. The last improvement of bearing seat structure,the belt can be easily replaced,become a more complete product structure.
2. Higher precision and make the cutter smooth and flexible ,easy to operate.
3.It makes the milling cutter easy to clamp for its high standard milling cutter and main axis taper from precision work.
4.Excellent gas oil automization cooling system ,makes the milling effect better,cutter is durable
| Model | CLXF-235*100A |
|---|---|
| Power Supply | 380V/50HZ |
| Input Power | 2.6KW |
| Air Pressure | 0.5~0.8MPa |
| Main shaft rotary speed | 12000r/min |
| Milling cutter diameter | Φ5, Φ8 |
| Copy routing range | 235*100mm |
| Overall dimension | 870*1130*1500mm |
| Weight | 230Kg |
