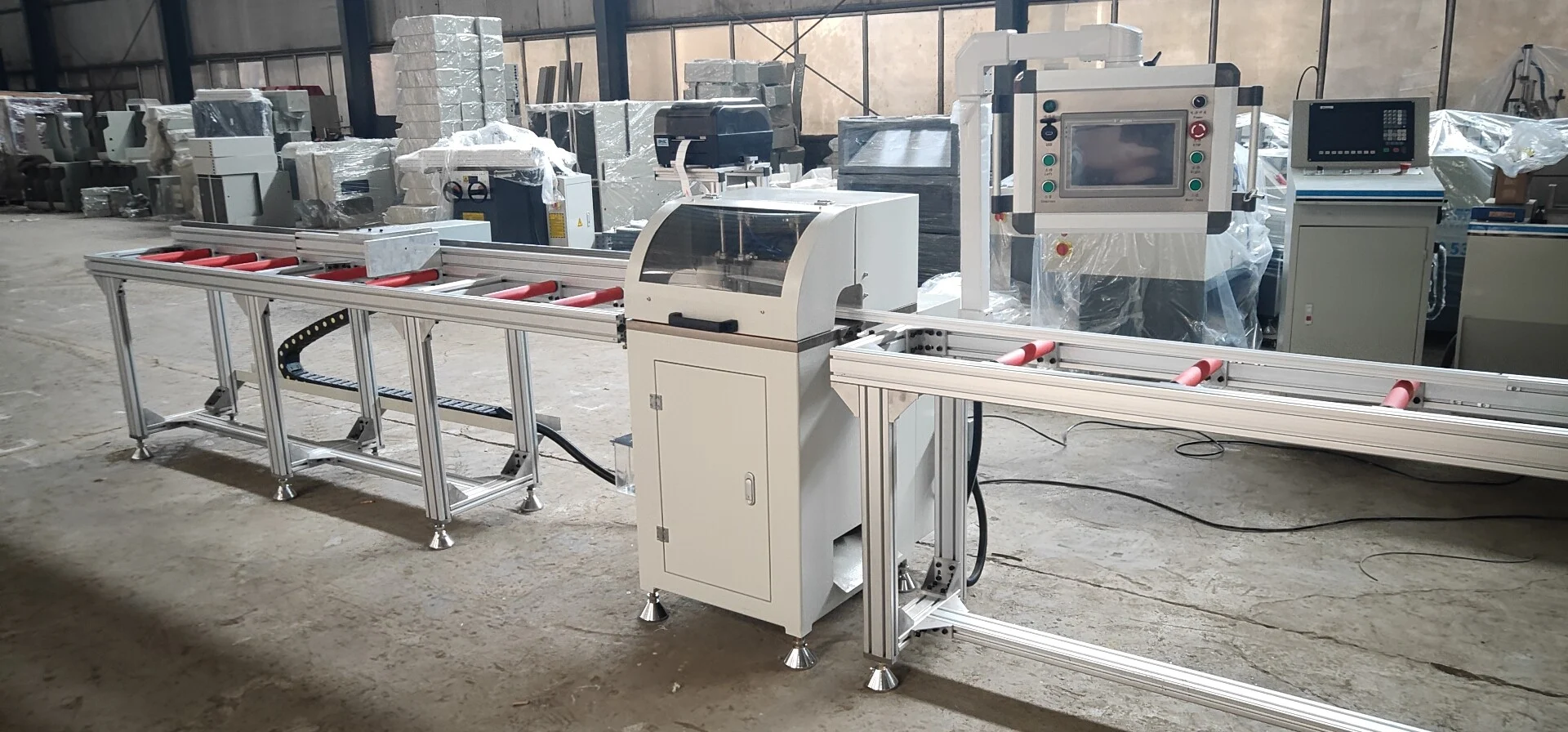

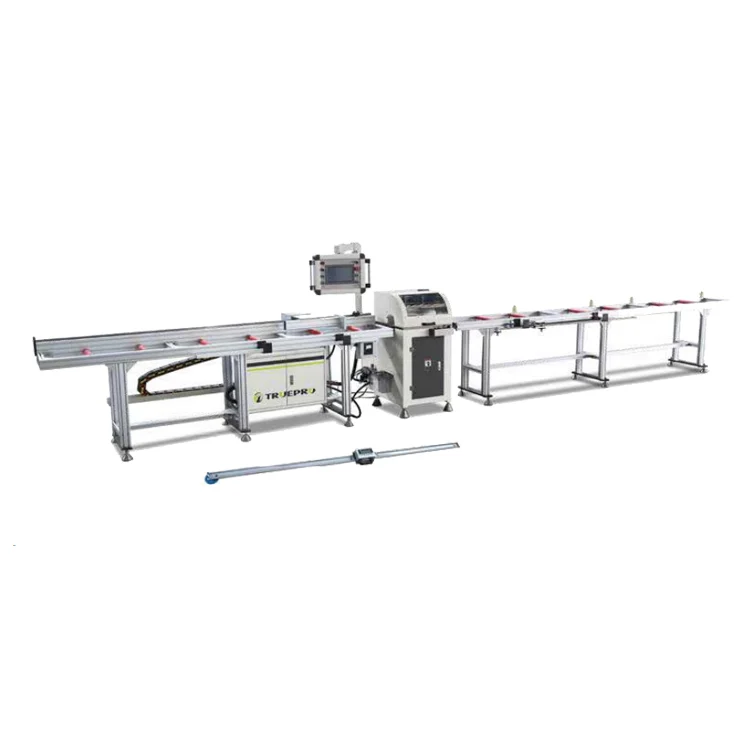

1. It is suitable for the 90° precision cutting process of aluminum alloy glass profile, equipped with wireless hand-held transmission system, and suitable for mass

continuous production.

2. Adopting infrared transmission, the accuracy is accurate, and no secondary modification is required.

3. Equipped with tool detection system to indicate the service life.

4. Equipped with wireless handheld transmission system, automatic material reduction function.

5. Coding function is standard, which is convenient for customers to use the material type, and will not make the wrong choice, thus improving the utilization rate

on the spot.

6. Equipped with Simic 2.0kW spindle motor, it has high power and strong load capacity, which provides guarantee for later use.

Detailed parameters

ModelLCYT-CNC-350
Input power supply 380V/50Hz
Cutting motor power1.5kW
Motor rotary speed2800r/min
Working air pressure 0.5~0.8MPa
Air consumption 15L/min
Saw blade specification Ф350×Ф30×3.2mm
Cutting width Max.70mm
Cutting heightMax.80mm
Cutting angle 90°
Cutting angle error5′
Flatness of cutting profile≤ 0.10mm
Roughness of cutting surfaceRa12.5μm
Overall dimension8500×1200×1100mm
WeightAbout 500kg
