4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.
Aluminum Window Double Head Cutting Machine can cut aluminum and PVC profiles, the inside of the head can cut PVC profiles, the outside of the head can cut aluminum profiles.
Double Head Cutting Machine 's head is driven by the motor, which is simple to operate and can save the cost.

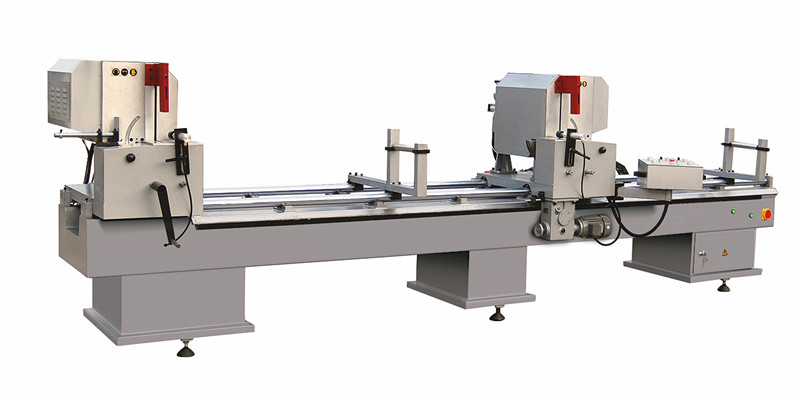

WhatsappAluminum Window Double Head Cutting Machine
EQUIPMENT FEATURES:
1. Aluminum Window Double Head Cutting Machine used for aluminum and PVC profile cutting.
2. The linear guiding pair ensures steady processing accuracy.
3. Saw blade ratates smoothly due to high accuracy.
4. Uniform speed feeding and smooth motion are due to airdraulic damping cylinder.
5. Double Head Cutting Machine has features of easy operation, reliable performance, advanced technique and
MAIN SPECIFICATION and TECHNICAL PARAMETER
| Power supply | 380V/50Hz |
| Air pressure | 0.5~0.8MPa |
| Cutting motor power | 2×1.5kW 1×0.55kW |
| Motor rotary speed | 2800r/min |
| Air consumption | 60L/min |
| Blade specification | Ф450×Ф30×4.4 Z=120 |
| Cutting length | Max 3700mm Min 400mmMax 3700mm Min 580mm |
| Cutting width | max 120mm |
| Cutting height : max 200mm - C | max 200mm |
| Cutting angle | 45° 90° 135° |
| Overall dimension | 4500×1170×1400mm |
| Weight | about1500kg |

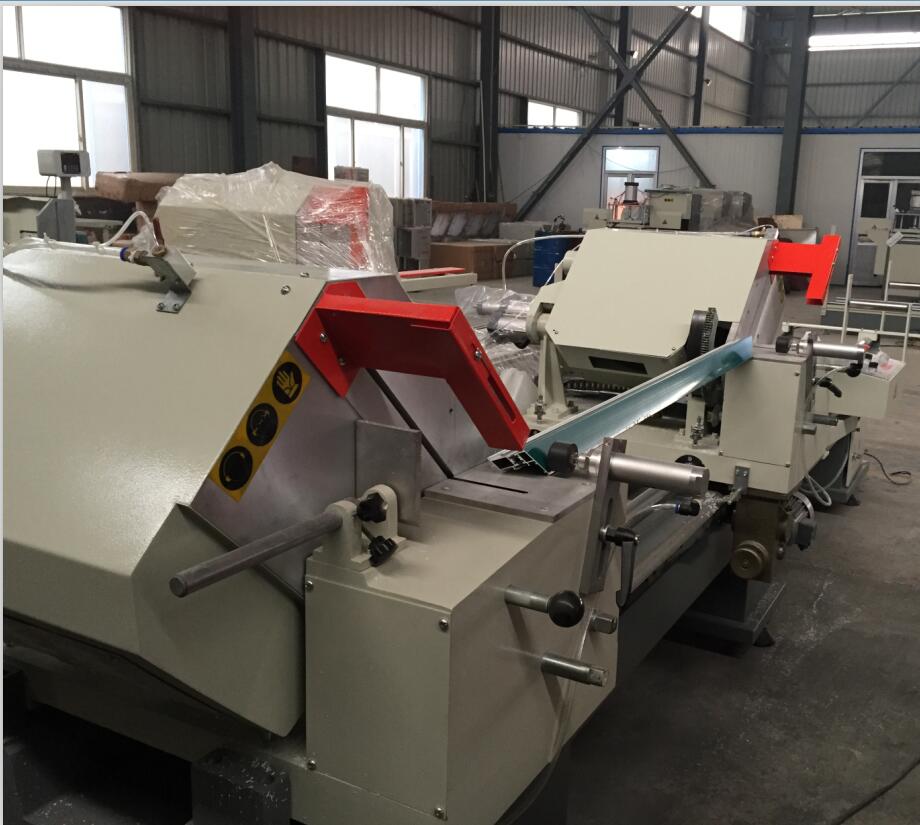

MACHINE DETAILS:

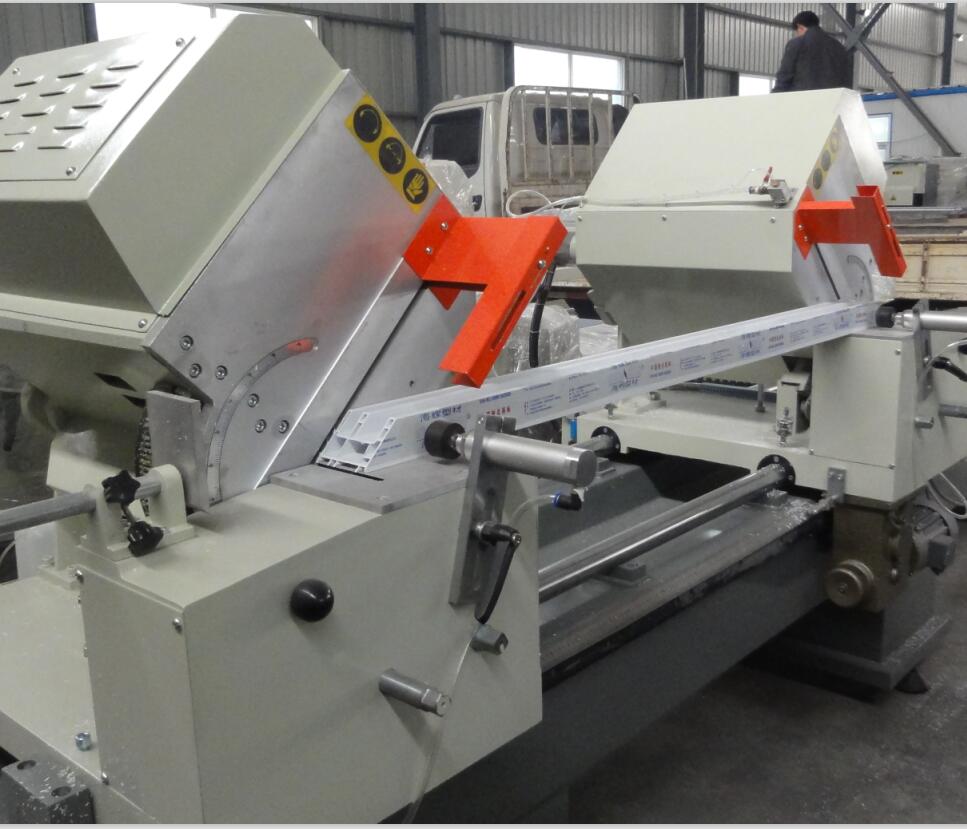

The outside of the head is used for cutting aluminum profile.
The inside of the head is used for cutting PVC profile.

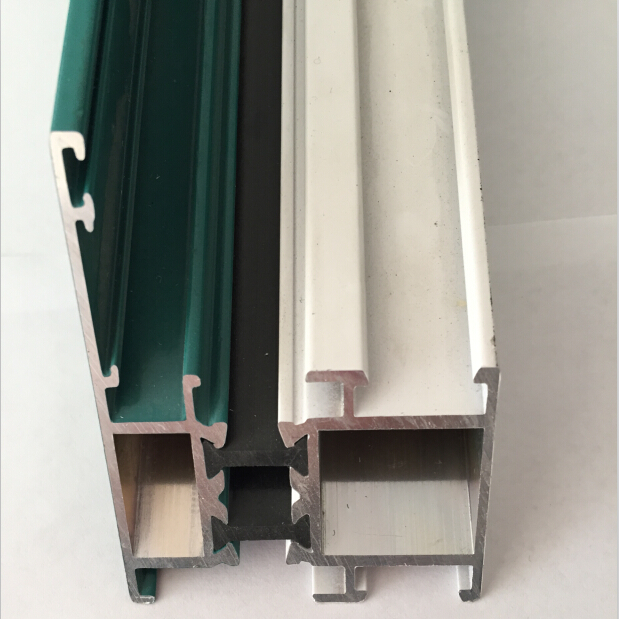

Cutting profile sample
