4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.

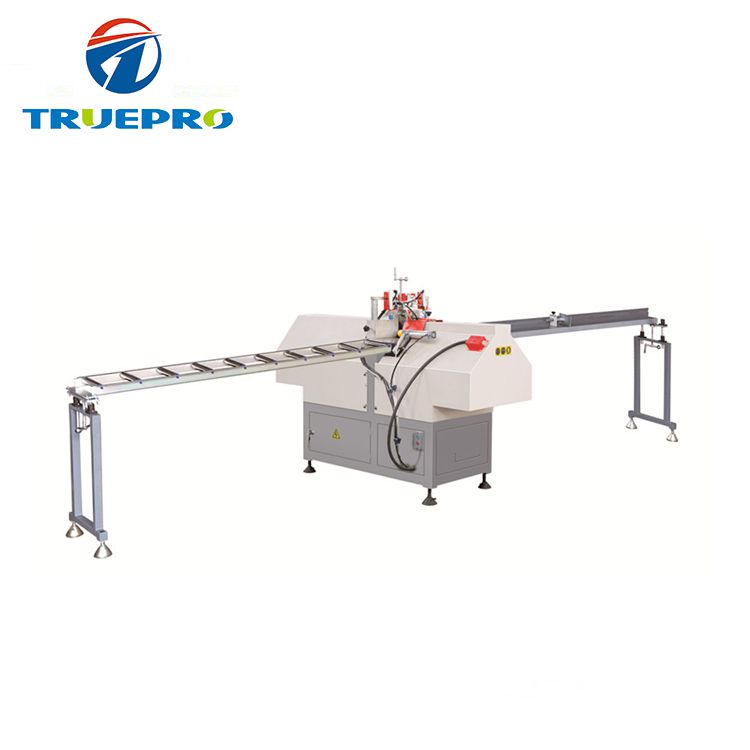

Mullion Cutting Saw For PVC Window Door used for sawing v-shaped head of plastic door and window tin plate when using welding technology.
Two 90 ° cutting saw blade in space decorate, a clamping two v-shaped head cutting at the same time, high accuracy, high production efficiency.
WhatsappMullion Cutting Saw For PVC Window Door
EQUIPMENT FEATURES:
Used for sawing v-shaped head of plastic door and window tin plate when using welding technology.
Two 90 ° cutting saw blade in space decorate, a clamping two v-shaped head cutting at the same time,
high accuracy, high production efficiency.
Horizontal layout, smooth movement, high precision of saw size.
Special clamping - lifting device, no jumping material.
Cutting waste, only in the saw blade, profile utilization rate is high
MAIN SPECIFICATION and TECHNICAL PARAMETER:
| Air pressure | 0.5~0.8MPa |
| Air consumption | 15L/min |
| Input Voltage | 380V/50Hz |
| Input Power | 3.0KW |
| Spindle rotary speed | 2800r/min |
| Cutting height | 110mm |
| Cutting width | 120mm |
| Cutting length | 300~2100mm |
| Overall dimension | 7500x1720x1390mm |
| Weight | 300kg |

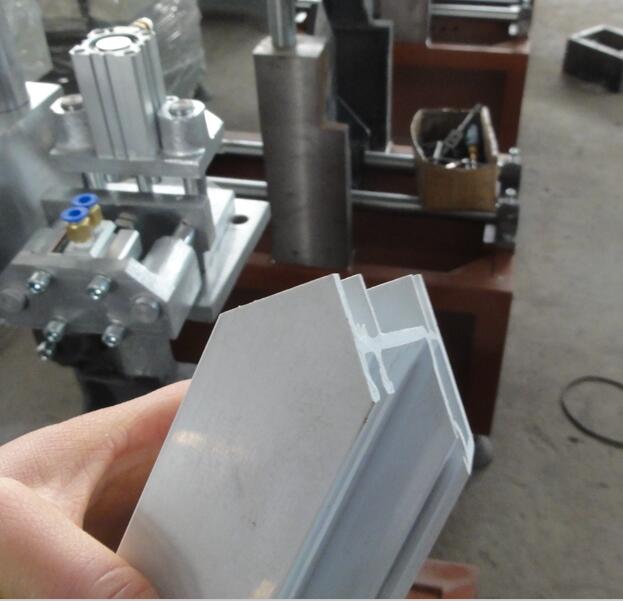

PROCESSING SAMPLE
Factory Show
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
