4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.
PVC Window Glazing Bead Cutting Saw Making Machine used to 45 ° to cut off the glass bead and pressure Angle of the milling.
Equipped with adjustable pressure strip gasket, it is not necessary to replace the gasket when changing profiles to avoid reinvestment and reduce the production preparation cycle of doors and Windows.
The adjustable positioning plate is provided with a planar finetuning device to make the inner vertical Angle of the laminate fit tightly after assembly

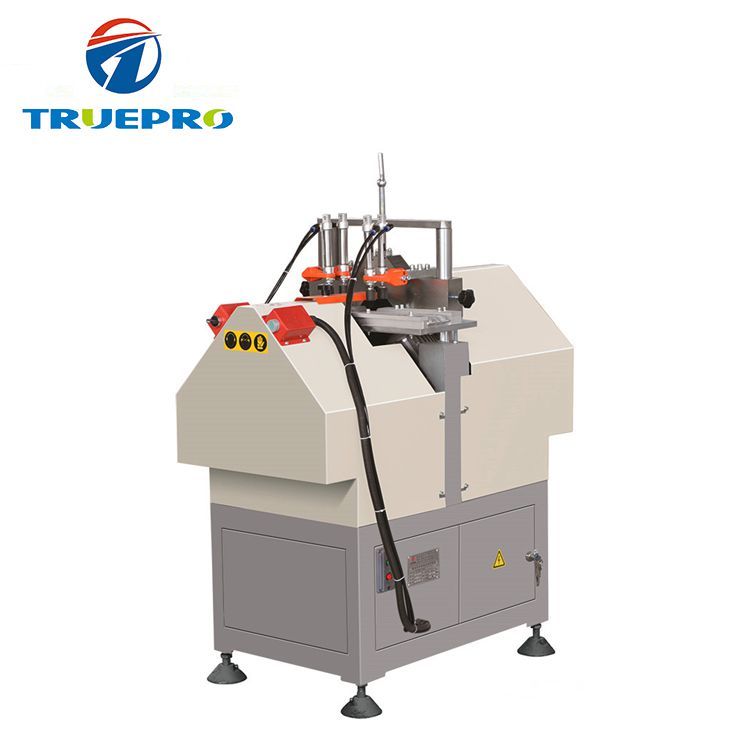

WhatsappPVC Window Glazing Bead Cutting Saw Making Machine

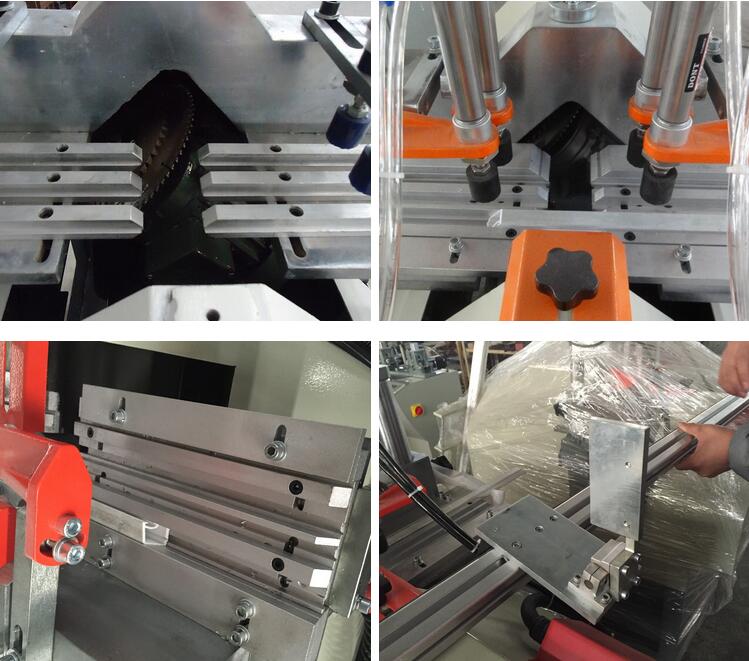

EQUIPMENT FEATURES:
- Used to 45 ° to cut off the glass bead and pressure Angle of the milling.
- It can cut two strip at the same time,high efficiency.
- Equipped with adjustable pressure strip gasket,
it is not necessary to replace the gasket when changing profiles to avoid reinvestment and reduce the production preparation cycle of doors and Windows.
- The adjustable positioning plate is provided with a planar finetuning device to make the inner vertical Angle of the laminate fit tightly after assembly
MAIN SPECIFICATION and TECHNICAL PARAMETER:
| Air pressure | 0.5~0.8MPa |
| Air Consumption | 2L/min |
| Input Voltage | 380V/50Hz |
| Input Power | 1.5KW |
| Spindle Rotary Speed | 2800r/min |
| Cutting Height | 33mm |
| Cutting Width | 100mm |
| Cutting Length | 350~1800mm |
| Overall Dimension | 1350x500x1350mm |
| Weight | 250kg |

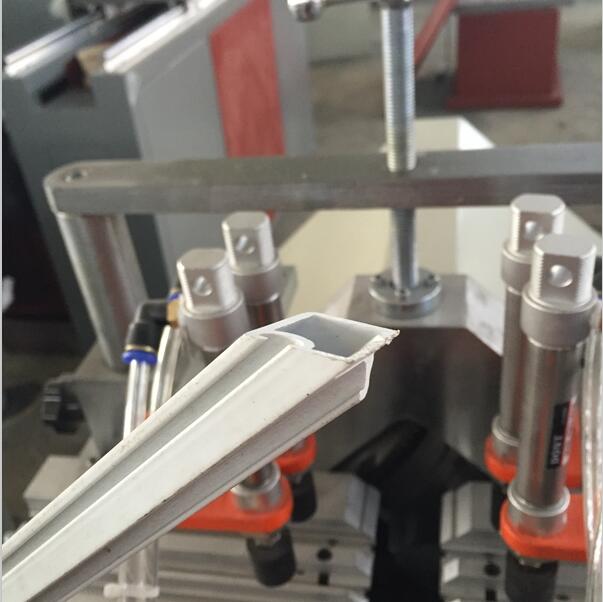

PROCESSING SAMPLE
Factory Show
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
