Automatic CNC Cutting Center For PVC Profile the automatic clamping, feeding and cutting of the profile is completed with a high degree of automation.
The manipulator can complete the sawing of multiple profiles by clamping at the same time, and the production efficiency is high.

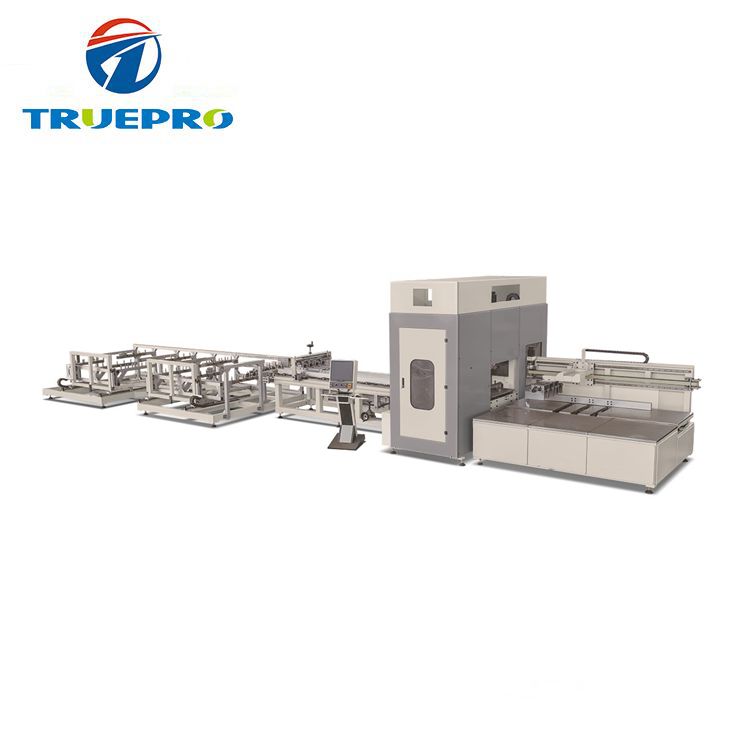

WhatsappAutomatic CNC Cutting Center For PVC Profile
EQUIPMENT FEATURES:
It is used to automatically cut 45, V - shaped openings and middle stiles of plastic profiles, and is suitable for large-scale production of high-grade doors and windows.
The automatic clamping, feeding and cutting of the profile is completed with a high degree of automation.
Equipped with a circulating feeding system, the production efficiency is greatly improved.
The manipulator can complete the sawing of multiple profiles by clamping at the same time, and the production efficiency is high.
The feeding manipulator adopts the full closed-loop control technology to ensure the feeding accuracy.
Bar code printer can be configured to print material identification in real time to realize process information identification and facilitate material management (software support ).
MAIN SPECIFICATION and TECHNICAL PARAMETER:
| Operating pressure | 0.5~0.8MPa |
| Gas consumption | 200L/min |
| Electric source | 380V/50Hz |
| Input power | 13KW |
| Saw blade speed | 3000r/min |
| Spindle motor power | 2x3KW |
| Cutting width | Max 140mm |
| Cutting height frame sector profile | ≤120mm |
| Middle stile profile | 54~120mm |
| V-mouth depth | ≤60mm |
| Cutting minimum length frame sector profile | 350mm |
| Middle stile profile length | 450mm |
| Length range of processed profile | Max 6000mm |
| External dimensions | 12700x4400x2300mm |
| Weight | 3300kg |
